Description

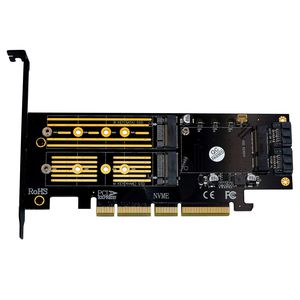

Upgrade Version 3 in 1 Msata and M.2 NGFF NVME SATA SSD to PCI-E 4X and SATA3 Adapter with Heatsink
★Features:
1. Supports PCIE M.2 SSD (NVMe or AHCI, Key-M), PCIE 3.0 X4 32 Gbps bandwidth, apply to 2280/2260/2242/2230mm
2.Supports SATA-based M.2 SSD (Key-B / B + M), SATA 6 Gbps bandwidth, apply to 2280/2260/2242/2230mm
3. Supports mSATA, 30x50mm, SATA 6 Gbps bandwidth
4. 3-channel SSD read/write LED indicator
6. Supports PCIe 2.0 ,3.0 and PCIe 4.0 motherboard
7. Supports 3 SSDs (M.2 PCIE-based SSDs, M.2 SATA-based SSDs and mSATA SSD) to work simultaneously.
8.NVME M.2 SSD to PCIE 3.0x4 (32Gbps), no need to use SATA cable to connect to the PC.
9. When working with SATA M.2 to SATA III (6Gbps) and mSATA to SATA III (6Gbps), a SATA cable is required to connect the motherboard. (The product already contains 2 SATA cables)
10. this adapter is compatible for PCI-E 4X, 8X, 16X, but the speed only PCI-E 4X.
★ Package list
SSD Adapter Card x1
I/O Bracket x1(high/Low Profilex1)
MiniCard extender bracket x1
Aluminum Heatsink x2
Heat conducting silica gel pad x4(2 PCS thickness and 2PCS thin)
Silica Gel Ring x4
SATA Cable x2
Screwdriver x1
Screw kit x1
★Features:
1. Supports PCIE M.2 SSD (NVMe or AHCI, Key-M), PCIE 3.0 X4 32 Gbps bandwidth, apply to 2280/2260/2242/2230mm
2.Supports SATA-based M.2 SSD (Key-B / B + M), SATA 6 Gbps bandwidth, apply to 2280/2260/2242/2230mm
3. Supports mSATA, 30x50mm, SATA 6 Gbps bandwidth
4. 3-channel SSD read/write LED indicator
6. Supports PCIe 2.0 ,3.0 and PCIe 4.0 motherboard
7. Supports 3 SSDs (M.2 PCIE-based SSDs, M.2 SATA-based SSDs and mSATA SSD) to work simultaneously.
8.NVME M.2 SSD to PCIE 3.0x4 (32Gbps), no need to use SATA cable to connect to the PC.
9. When working with SATA M.2 to SATA III (6Gbps) and mSATA to SATA III (6Gbps), a SATA cable is required to connect the motherboard. (The product already contains 2 SATA cables)
10. this adapter is compatible for PCI-E 4X, 8X, 16X, but the speed only PCI-E 4X.
★ Package list
SSD Adapter Card x1
I/O Bracket x1(high/Low Profilex1)
MiniCard extender bracket x1
Aluminum Heatsink x2
Heat conducting silica gel pad x4(2 PCS thickness and 2PCS thin)
Silica Gel Ring x4
SATA Cable x2
Screwdriver x1
Screw kit x1
