Specification:
Nover Nover LA Audio Grade Power Capacitor/ 10000uF/50V/85C X 4
PCB size:109*71*40mm
Bridge diode Rectifier KBPC3510L 35A .1000V

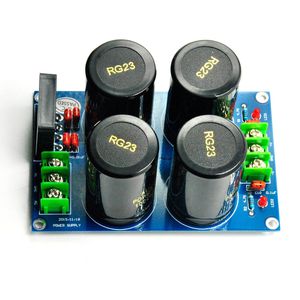

Dual power supply rectifier filter plate, "+" "-" output terminal with LED indication.This board can be installed under the maximum diameter of 35mm capacitance, and the capacitance pitch is 10mm.
The board with 4x10000uF/50V NOVER audio-specific capacitors, 35A high current big bridge pile,the input and output terminals of the high current, Philips CBB capacitors .It can be used with LM3886 and TDA7293 amplifier boards, also be used for other amp power supply.
The capacitor voltage is 50V, maximum input voltage is 35V or so.
Package:
1 X Audio Power Supply Amplifier Board
