Feature：
Supports mon0 500-1000W 8ohm full bridge amplifiers
the maximum output voltage + -100V sine wave
it uses FET HEXFET parallel output, so its current output capacity is particularly large
it can work at 1000W 4 ohms. which requires a channel at least 3KG above the radiator and AC36-0-36 1200VA transformer

Parameter：
Output power:
500W 8R 1000W 4R mono, supply voltage + - 50V DC, plus AC12-0-12
400W 8R, 800W 4R mono, supply voltage + -45V DC, plus AC12-0-12
300W 8R, 600W 4R mono, supply voltage + -38V DC, plus AC12-0-12
Voltage gain: 200
Input sensitivity: 0.5V, output + -100V
Noise value <25MV
Distortion <0.02% 1k hz, 500w, 8 ohm
Maximum output current> 20A
Amplifier efficiency> 60%, efficiency than half-bridge amplifier 10%
Protection circuit working state: boot delay of about 3 seconds, then LED flashing
No DC output detection is normal, the relay connected, this time the LED is always bright
If a fault occurs in use, the relay is disconnected and the LED flashes

Package：

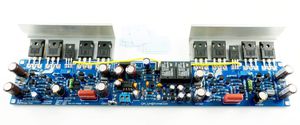

1 pc L50 500W 8Ohm Full Bridge Mono Amplifier Board
