Specifications
Model Number: HES303-XD
Image Sensor: 1/3″ progressive scan CMOS
Min. illumination: 0.01 lux @ F1.2, AGC ON, 0 lux with IR
Shutter time: 1/30s ~ 1/100,000s
Lens: 4mm @ F2.0, angle of view: 75.8° (2.8mm, 6mm optional)
lens mount: M12
Angle adjustment: Pan: 0° ~ 355°, tilt 0° ~ 75°
Digital noise reduction: 3D DNR
Wide dynamic range: True WDR, 120db
Backlight compensation: Yes, zone configurable
Video compression: H.264 / MJPEG
H.264 codec profile: Main profile
Bit rate: 32 Kbps ~ 16 Mbps
Dual stream: Yes
Max. image resolution: 3MP CMOS,(2048 x 1536)
Frame rate: 60Hz: 20fps (2048 x 1536), 30fps (1920 x 1080), 30fps (1280 x 720)
Image settings: Saturation, brightness, contrast, sharpness adjustable through client software or web browser
Network storage: NAS
Alarm trigger: Motion detection, tampering alarm
Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos
System compatibility: ONVIF, PSIA, CGI
General functionalities: User authentication, watermark
Communication interface: 1 RJ45 10M/ 100 M Ethernet interface
Operating conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F) humidity 95% or less (non-condensing)
Power supply: 12 VDC +/- 10%, PoE (802.3af)
Power consumption: Max, 5W (7W with ICR on)
Ingress protection: IP66
EXIR rangeup to 100ft
Dimensions: Ø 127 x 97.5 mm ( 5″x3.8″ )
Weight: 670g (1.5 lbs)

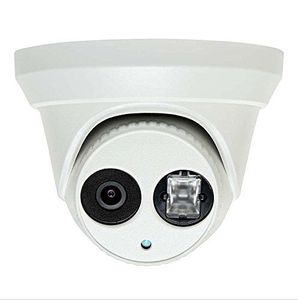

3MP PoE Security IP Camera - Compatible with Hikvision DS-2CD2332-I Turret,Indoor and Outdoor,Weather Proof,IR Night Vision, 4mm Lens,Best for Home and Business Security,3 Year Warranty
Specifications
Model Number: HES303-XD
Image Sensor: 1/3″ progressive scan CMOS
Min. illumination: 0.01 lux @ F1.2, AGC ON, 0 lux with IR
Shutter time: 1/30s ~ 1/100,000s
Lens: 4mm @ F2.0, angle of view: 75.8° (2.8mm, 6mm optional)
lens mount: M12
Angle adjustment: Pan: 0° ~ 355°, tilt 0° ~ 75°
Digital noise reduction: 3D DNR
Wide dynamic range: True WDR, 120db
Backlight compensation: Yes, zone configurable
Video compression: H.264 / MJPEG
H.264 codec profile: Main profile
Bit rate: 32 Kbps ~ 16 Mbps
Dual stream: Yes
Max. image resolution: 3MP CMOS,(2048 x 1536)
Frame rate: 60Hz: 20fps (2048 x 1536), 30fps (1920 x 1080), 30fps (1280 x 720)
Image settings: Saturation, brightness, contrast, sharpness adjustable through client software or web browser
Network storage: NAS
Alarm trigger: Motion detection, tampering alarm
Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos
System compatibility: ONVIF, PSIA, CGI
General functionalities: User authentication, watermark
Communication interface: 1 RJ45 10M/ 100 M Ethernet interface
Operating conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F) humidity 95% or less (non-condensing)
Power supply: 12 VDC +/- 10%, PoE (802.3af)
Power consumption: Max, 5W (7W with ICR on)
Ingress protection: IP66
EXIR rangeup to 100ft
Dimensions: Ø 127 x 97.5 mm ( 5″x3.8″ )
Weight: 670g (1.5 lbs)
