Description

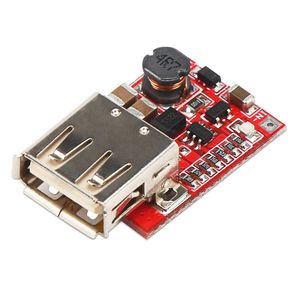

DC 3V to 5V USB Battery Voltage Step Up Boost Converter Board
Parameter:
Module property: non-isolated step-up module
Input voltage: DC 1v-5v (Recommended above 3V. If the input voltage too low, the module would generate noise.)
Output voltage: DC 5.1v-5.2v
Rated output current: 1A (single lithium battery input)
Max current: 1.5A
Efficiency: Up to 96% (the higher the input voltage, the higher the efficiency)
Switching frequency: 500KHz
Output ripple: 30mV (MAX), 20M bandwidth (input 4V, output 5.1V/1A)
Operating Temperature: Industrial (-40℃ to +85℃)
Full load temperature rise: 30°c
Quiescent current: 200uA
Load regulation: ± 1%
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please use the lithium battery with protection or add a battery protection board.)
Input Reverse Polarity Protection: None
Wiring:
Wiring method: Welding
Input: IN+ input postive; IN- input negative
Output: USB Output
LED Indicator:
When voltage is lower than 2.7V with load, the LED indicator light will be off. When voltage is higher than 2.7V, the LED will light up if with load and be slightly light if with no load.
Application:
1. DIY a power bank.
2. Step up a lithium battery to 5V to supply power for your electronic device.
3. Supply stable 5V for your system board.
Package Included:
1x 3V to 5V Converter
Parameter:
Module property: non-isolated step-up module
Input voltage: DC 1v-5v (Recommended above 3V. If the input voltage too low, the module would generate noise.)
Output voltage: DC 5.1v-5.2v
Rated output current: 1A (single lithium battery input)
Max current: 1.5A
Efficiency: Up to 96% (the higher the input voltage, the higher the efficiency)
Switching frequency: 500KHz
Output ripple: 30mV (MAX), 20M bandwidth (input 4V, output 5.1V/1A)
Operating Temperature: Industrial (-40℃ to +85℃)
Full load temperature rise: 30°c
Quiescent current: 200uA
Load regulation: ± 1%
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please use the lithium battery with protection or add a battery protection board.)
Input Reverse Polarity Protection: None
Wiring:
Wiring method: Welding
Input: IN+ input postive; IN- input negative
Output: USB Output
LED Indicator:
When voltage is lower than 2.7V with load, the LED indicator light will be off. When voltage is higher than 2.7V, the LED will light up if with load and be slightly light if with no load.
Application:
1. DIY a power bank.
2. Step up a lithium battery to 5V to supply power for your electronic device.
3. Supply stable 5V for your system board.
Package Included:
1x 3V to 5V Converter
3V to 5V Converter, DROK 1A DC USB Step Up Boost Module, 1V-5V to 5.1V-5.2V Mini Battery Voltage Regulator Booster Circuit Board for Phone Charging
Current Price
$7.59
Average
$6.32
Min Price
$4.49
Max Price
$7.59
Price dynamics
17%
Description
DC 3V to 5V USB Battery Voltage Step Up Boost Converter Board
Parameter:
Module property: non-isolated step-up module
Input voltage: DC 1v-5v (Recommended above 3V. If the input voltage too low, the module would generate noise.)
Output voltage: DC 5.1v-5.2v
Rated output current: 1A (single lithium battery input)
Max current: 1.5A
Efficiency: Up to 96% (the higher the input voltage, the higher the efficiency)
Switching frequency: 500KHz
Output ripple: 30mV (MAX), 20M bandwidth (input 4V, output 5.1V/1A)
Operating Temperature: Industrial (-40℃ to +85℃)
Full load temperature rise: 30°c
Quiescent current: 200uA
Load regulation: ± 1%
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please use the lithium battery with protection or add a battery protection board.)
Input Reverse Polarity Protection: None
Wiring:
Wiring method: Welding
Input: IN+ input postive; IN- input negative
Output: USB Output
LED Indicator:
When voltage is lower than 2.7V with load, the LED indicator light will be off. When voltage is higher than 2.7V, the LED will light up if with load and be slightly light if with no load.
Application:
1. DIY a power bank.
2. Step up a lithium battery to 5V to supply power for your electronic device.
3. Supply stable 5V for your system board.
Package Included:
1x 3V to 5V Converter
Parameter:
Module property: non-isolated step-up module
Input voltage: DC 1v-5v (Recommended above 3V. If the input voltage too low, the module would generate noise.)
Output voltage: DC 5.1v-5.2v
Rated output current: 1A (single lithium battery input)
Max current: 1.5A
Efficiency: Up to 96% (the higher the input voltage, the higher the efficiency)
Switching frequency: 500KHz
Output ripple: 30mV (MAX), 20M bandwidth (input 4V, output 5.1V/1A)
Operating Temperature: Industrial (-40℃ to +85℃)
Full load temperature rise: 30°c
Quiescent current: 200uA
Load regulation: ± 1%
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please use the lithium battery with protection or add a battery protection board.)
Input Reverse Polarity Protection: None
Wiring:
Wiring method: Welding
Input: IN+ input postive; IN- input negative
Output: USB Output
LED Indicator:
When voltage is lower than 2.7V with load, the LED indicator light will be off. When voltage is higher than 2.7V, the LED will light up if with load and be slightly light if with no load.
Application:
1. DIY a power bank.
2. Step up a lithium battery to 5V to supply power for your electronic device.
3. Supply stable 5V for your system board.
Package Included:
1x 3V to 5V Converter
