Overview

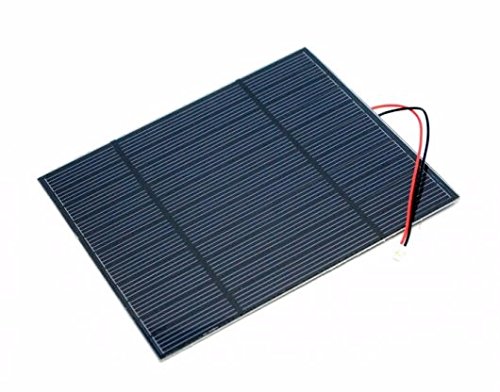

This solar panel is made of single-crystal material that performs high solar energy transformation efficiency at 15%.
It has a fine resin surface and sturdy back suitable for outdoor environments.
A 2mm JST connecter is attached to the penal, which makes it perfect to team up with most of our can-use-solar-power-supply boards,Lipo Rider charging boards series and XBee carrier WSN products series.

The typical open circuit voltage is around 5V, depending on light intensity.
X
To prevent any damage to boards that accept a narrow range of input voltage, like Lipo Rider, it¡¯s recommended to check whether the OC voltage is safe before any connection.

Specification

- PCB size : 138*160*1.5 mm
- Monolithic : 10.93*156 mm
- Efficiency : 16%
- Voltage:5.5V;
- Current:540mA
- Power:3W
- Connector: 2.0mm JST
- Type:156 Two line;
- PCB Material : all Glass fiber
- PCB requirements : positive

Features

? Dimensions: 160*138*2.5(Plus/minus 0.2) mm
? Typical voltage: 5.5V
? Typical current: 540mA
? Open-circuit voltage: 8.2 V
? Maximum load voltage: 6.4V

Application

- Solar Tingyuan Deng lighting
- Small household lighting systems
- Solar street lighting
- Outdoor solar advertising
- Suitable for all kinds of low-power electrical appliances, emergency lights Yeah, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar lights, small solar systems

Shipping List

3W Solar Panel * 1
