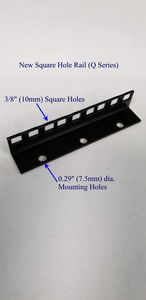

24U steel server rack rail with 3/8" square holes, (Q24U)

this is an assembly instruction guide for the EMS server enclosures step one fit the top and bottom panels to the two rack frames both the top and bottom panels have grooves for the rack frame the top of the rack enclosures has vented slots on the bottom has removable cable entry slots using a Phillips screwdriver fix the panel's to the frames using the m8 bolts and m8 nuts provided with the server enclosure there are two fixing holes in each corner step to fix the heavy-duty casters and stabilizing feet to the bottom of the rack use a screwdriver to attach the four casters using the screws provided four screws are used to hold each caster in position now screw the four adjustable feet into the corner of the bottom plate adjust the height of the nut to raise or lower the feet step 3 fit the horizontal support rails to the rack frame using m6 bolts and m6 cage nuts there are three suppor
