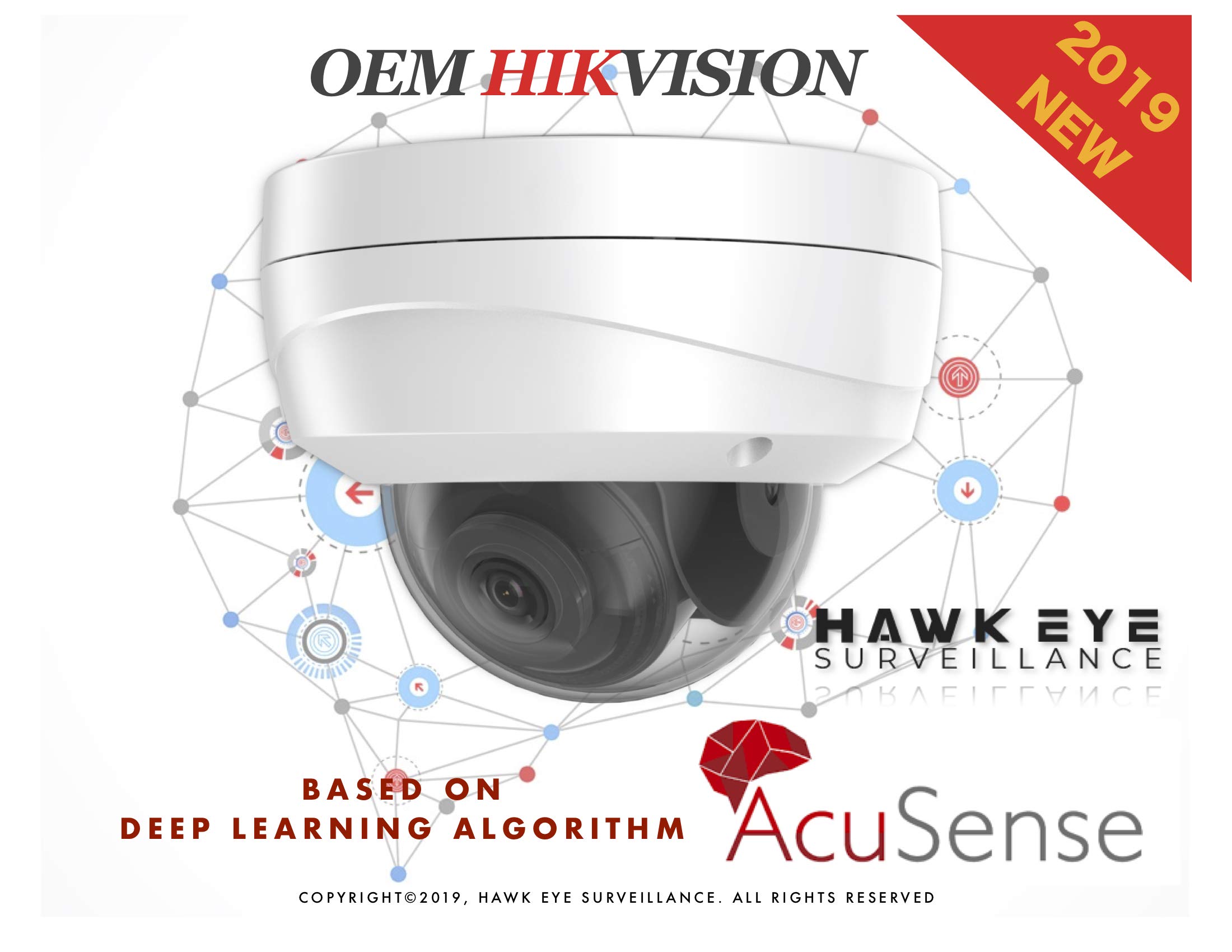

The Hawkeye Surveillance Outdoor AcuSense Fixed Dome Camera provides high definition network output. It supports H.265+ video compression, which assures savings in bandwidth and storage.
Specifications
Model Number: HES344-TD
Image Sensor: 1/2.7″ progressive scan CMOS
Min. illumination: 0.007 lux @ (F1.2, AGC ON), 0 lux with IR
Shutter time: 1/3s ~ 1/100,000s
Lens: 2.8mm @ F1.2
Angle adjustment: Pan: 0° ~ 355°, tilt 0° ~ 75°, Rotation: 0 ~ 355°
Digital noise reduction: 3D DNR
Wide dynamic range: True WDR 120dB
Day & night: ICR
Video compression: H.264 / H.264+ / MJPEG / H.265 / H.265+
Triple stream: Yes
AudioN/A
AlarmN/A
Max. image resolution: 2688×1520
Frame rate: 30fps (2688×1520)
Image settings: Saturation, brightness, contrast, sharpness adjustable through client software or web browser
BLC: Yes
On Board Storage: Micro SD slot, up to 128GB
Alarm trigger: Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos
API: ONVIF(Profile S, Profile G), ISAPI
General functionalities: User authentication, watermark
Communication interface: 1 RJ45 10M / 100M Ethernet interface
Operating conditions: -30°C ~ 50°C (-22°F ~ 122°F) humidity 95% or less (non-condensing)
Power supply: 12 VDC +/- 10%, PoE (802.3af, class 3)
Power consumption: Max, 8.5W
Ratings: IP67 / IK10
IR range: Up to 90ft
Dimensions: Ø 4.8″x3.6″
Weight: 610g (1.3 lbs)
4MP AcuSense PoE IP Camera - Compatible with Hikvision DS-2CD2146G1-I True WDR H.265+ Outdoor Dome Network Camera Human and Vehicle Detection
The Hawkeye Surveillance Outdoor AcuSense Fixed Dome Camera provides high definition network output. It supports H.265+ video compression, which assures savings in bandwidth and storage.
Specifications
Model Number: HES344-TD
Image Sensor: 1/2.7″ progressive scan CMOS
Min. illumination: 0.007 lux @ (F1.2, AGC ON), 0 lux with IR
Shutter time: 1/3s ~ 1/100,000s
Lens: 2.8mm @ F1.2
Angle adjustment: Pan: 0° ~ 355°, tilt 0° ~ 75°, Rotation: 0 ~ 355°
Digital noise reduction: 3D DNR
Wide dynamic range: True WDR 120dB
Day & night: ICR
Video compression: H.264 / H.264+ / MJPEG / H.265 / H.265+
Triple stream: Yes
AudioN/A
AlarmN/A
Max. image resolution: 2688×1520
Frame rate: 30fps (2688×1520)
Image settings: Saturation, brightness, contrast, sharpness adjustable through client software or web browser
BLC: Yes
On Board Storage: Micro SD slot, up to 128GB
Alarm trigger: Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos
API: ONVIF(Profile S, Profile G), ISAPI
General functionalities: User authentication, watermark
Communication interface: 1 RJ45 10M / 100M Ethernet interface
Operating conditions: -30°C ~ 50°C (-22°F ~ 122°F) humidity 95% or less (non-condensing)
Power supply: 12 VDC +/- 10%, PoE (802.3af, class 3)
Power consumption: Max, 8.5W
Ratings: IP67 / IK10
IR range: Up to 90ft
Dimensions: Ø 4.8″x3.6″
Weight: 610g (1.3 lbs)
