Camera
Image Sensor:1/1.8" Progressive Scan CMOS
Signal System:PAL/NTSC
Min. Illumination:0.0014 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter time:1/3 s to 1/100,000 s
Slow shutter:Support
Lens:4 mm, horizontal: 94°, vertical: 48°, diagonal: 115°
Lens Mount:M16
Day& Night:Auto
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Compression Standard
Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:32Kbps~16Mbps
Max. Image Resolution:2688 x 1520 @ 30fps
Image Enhancement:BLC/3D DNR/HLC/ROI
Image Settings:Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
ROI:Support 1 fixed region for main stream and sub-stream separately
Network
Network Storage:microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
General Function:One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
System Compatibility:ONVIF (Profile S, Profile G),ISAPI
Interface
Communication Interface:1 RJ45 10M / 100M Ethernet interface
Reset Button:Yes
Smart Feature-set
Behavior Analysis:Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Line Crossing Detection:Cross a pre-defined virtual line
Intrusion Detection:Enter and loiter in a pre-defined virtual region
Unattended Baggage:Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:Objects removed from the pre-defined region, such as the exhibits on display.
General
Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F)Humidity 95% or less (non-condensing)
Power Supply:12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3)
Weather Proof:IP66

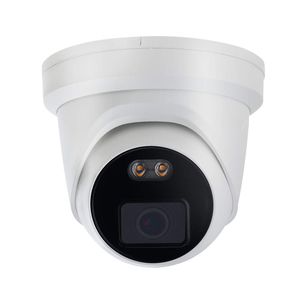

4MP Full-color Night Vision POE IP Camera Turret, OEM ColorVu DS-2CD2347G1-L(U) 4mm Lens, Built-in Audio, MicroSD Recording, IP66 Outdoor Network Surveillance Security Camera Compatible with Hikvision
Camera
Image Sensor:1/1.8" Progressive Scan CMOS
Signal System:PAL/NTSC
Min. Illumination:0.0014 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter time:1/3 s to 1/100,000 s
Slow shutter:Support
Lens:4 mm, horizontal: 94°, vertical: 48°, diagonal: 115°
Lens Mount:M16
Day& Night:Auto
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Compression Standard
Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:32Kbps~16Mbps
Max. Image Resolution:2688 x 1520 @ 30fps
Image Enhancement:BLC/3D DNR/HLC/ROI
Image Settings:Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
ROI:Support 1 fixed region for main stream and sub-stream separately
Network
Network Storage:microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
General Function:One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
System Compatibility:ONVIF (Profile S, Profile G),ISAPI
Interface
Communication Interface:1 RJ45 10M / 100M Ethernet interface
Reset Button:Yes
Smart Feature-set
Behavior Analysis:Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Line Crossing Detection:Cross a pre-defined virtual line
Intrusion Detection:Enter and loiter in a pre-defined virtual region
Unattended Baggage:Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:Objects removed from the pre-defined region, such as the exhibits on display.
General
Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F)Humidity 95% or less (non-condensing)
Power Supply:12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3)
Weather Proof:IP66
