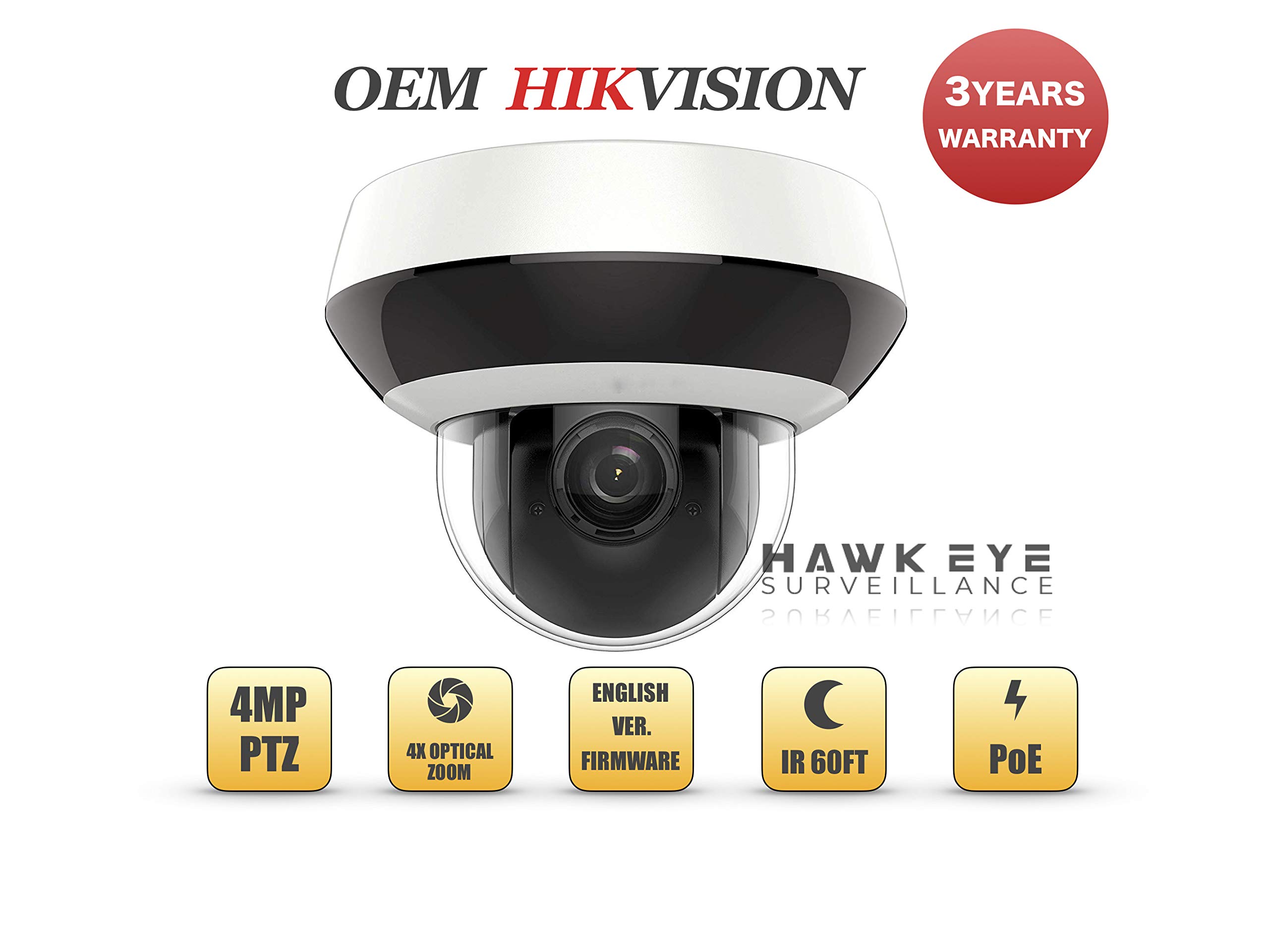

✔4MP Network Mini PTZ Dome Camera
- 2560 x 1440
- 4X Optical Zoom
- 120dB WDR
- 12VDC, PoE
- IP66, IK10
- 60ft IR
The Hawk Eye Mini PTZ Camera is the perfect camera for indoor and outdoor home and business usage - featuring a high-resolution 4MP sensor with True WDR and a 2.8-12mm 4X Optical Zoom lens, the camera will capture a clear, wide image in any lighting situation.
[Specifications]
Model Number: HES104-IR/4X
Image Sensor: 1/3″ Progressive Scan CMOS
Min. Illumination: F1.6, AGC On : Color: 0.005 lux, B/W: : 0.001 lux, 0 lux with IR
Max Resolution: 2560 x 1440
Image Compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Focal Length: 2.8 - 12mm, 4X
Shutter Time: 1s to 1/30,000 s
Digital Zoom: 16X
Angle of View: 35° - 11.56°
Aperture: F1.6 - F2.7
WDR: 120dB
Pan & Tilt Range: Pan: 0 - 330°, Tilt : 0 - 90°
Number of Presets: 300
Patrol: 8 patrols, up to 32 presets per patrol
D/N ModeI: CR
Park Action: Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan
Alarm: I/O2/2
Audio: I/O1/1
Frame Rate: 30fps @ 2560 x 1440, 60fps @ 1920 x 1080
Protection Level: IP66, TVS 4,000V lightning protection, surge protection and voltage transient protection
Wall Mount: HES-273ZJ-PT6
Power: 12VDC, PoE+ (802.3at, class 4), Max. 18W
Dimensions: ∅5.15″ x 4″
Weight: 1.17lbs
NOTE: Any 4MP Hikvision compatible camera may need an NVR firmware update to work (and may not work at all depending on the age / model of the NVR); please verify that your NVR can support 4MP Hikvision compatible cameras if possible.
