⚠ Built-in microphone
Lens Size:2.8MM

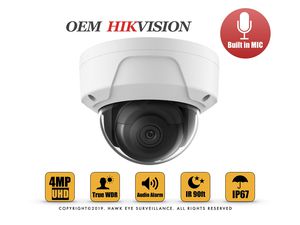

The Hawk Eye Dome Camera is the perfect camera for indoor and outdoor home and business usage - featuring a high-resolution 4MP sensor with True WDR and a 2.8mm lens, the camera will capture a clear, wide image in any lighting situation.
Specifications
Model Number: HES324-TDU
Image Sensor: 1/3″ progressive scan CMOS
Min. illumination: 0.01 lux @ (F1.2, AGC ON), 0 lux with IR
Shutter time: 1/3s ~ 1/100,000s
Lens: 4mm @ F1.2
Angle adjustment: Pan: -90° ~ 90°, tilt 0° ~ 75°, Rotation: 0-355°
Digital noise reduction: 3D DNR
Wide dynamic range: True WDR
Day & night: ICR
Video compression: H.264 / H.264+ / MJPEG / H.265 / H.265+
Triple stream: Yes
Audio: 1/1, built in MIC
Alarm: 1/1
Max. image resolution: 2688×1520
Frame rate: 30fps (2688×1520)
Image settings: Saturation, brightness, contrast, sharpness adjustable through client software or web browser
BLC: Yes
On Board Storage: Micro SD slot, up to 128GB
Alarm trigger: Motion detection, tampering alarm
Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos
System compatibility: ONVIF, ISAPI
General functionalities: User authentication, watermark
Communication interface: 1 RJ45 10M / 100M Ethernet interface
Operating conditions: -30°C ~ 60°C (-22°F ~ 140°F) humidity 90% or less (non-condensing)
Power supply: 12 VDC +/- 10%, PoE (802.3af)
Power consumption: Max, 6W
Ratings: IP67 / IK10
IR range: Up to 90ft
Dimensions: Ø 4.4″x3.2″
Weight: 610g (1.3 lbs)
