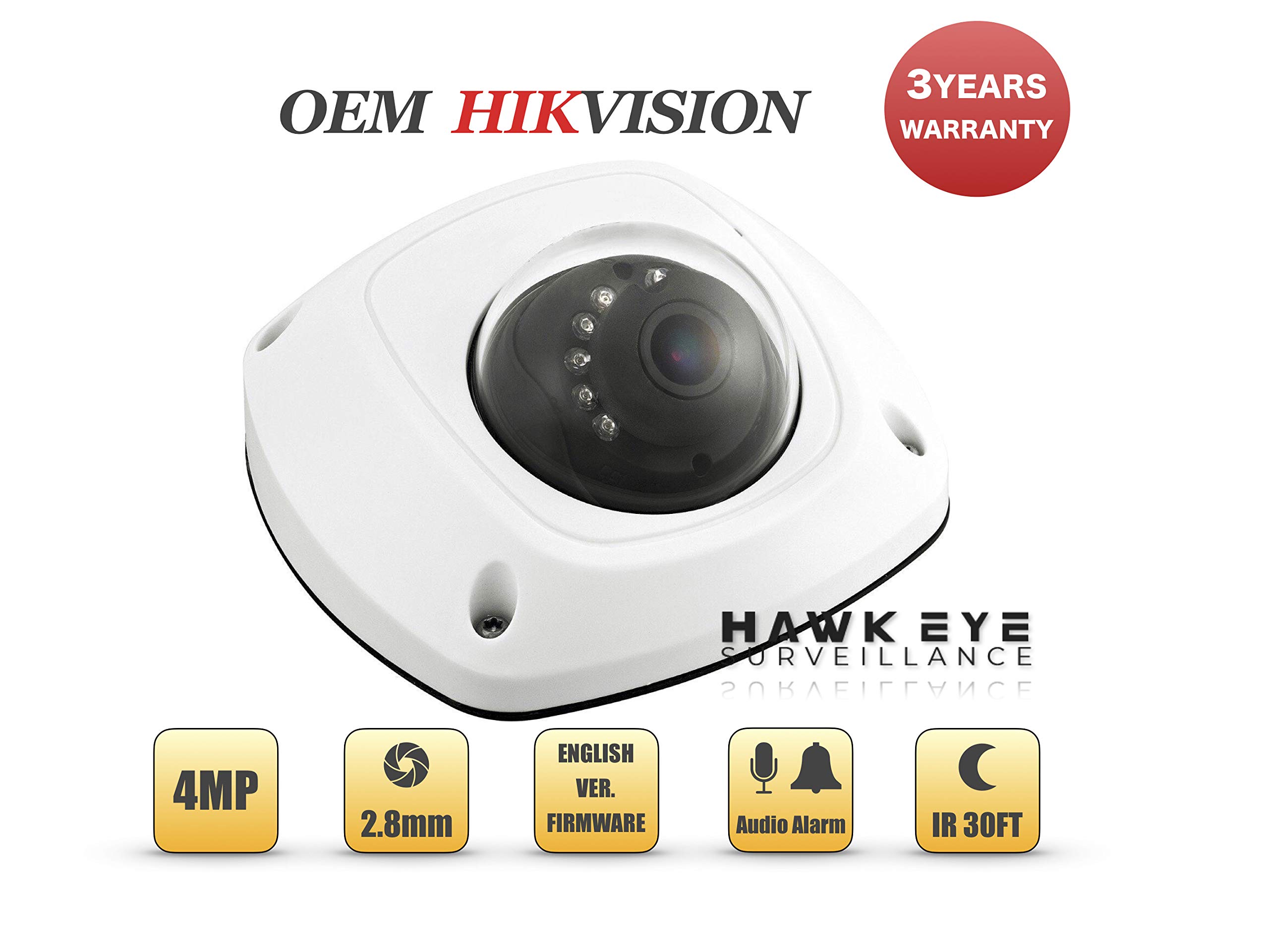

4MP WDR Wi-Fi Fixed, Vandal-Proof Mini Dome, Exterior

✔Up to 4 megapixel (2688 x 1520) resolution

✔Full HD1080p real-time video

✔Built in Mic

✔On-board storage (up to 128 GB)

✔Vandal-proof housing

✔True WDR & 3D DNR & BLC

✔IP66 & IK08 protection

Specifications

Camera
Image Sensor1/3" Progressive Scan CMOS
Min. Illumination0.01 Lux @ (F1.2, AGC On), 0.0 Lux with IR
Shutter Speed1/3 s to 1/10,000 s
Lens4mm @ F2.0, Angle of View: 76°
Lens MountM12
Angle AdjustmentPan: -30° - 30°, Tilt: 0° - 75°, Rotation: 0° - 360°
Day & NightIR Cut Filter With Auto Switch
Digtal Noise Reduction3D DNR
Wide Dynamic Range120dB

Compression Standard
Video CompressonH.264 / MJPEG / H.264+
H.264 TypeMain Profile
Video Bit Rate32 Kbps - 16 Mbps
Dual Steam Support

Max. Resolution2688 x 1520
Frame Rate50 Hz:  20 FPS (2688x1520), 25 FPS (1920x1080), 25 FPS (1280x720)60 Hz:  20 FPS (2688x1520), 30 FPS (1920x1080), 30 FPS (1280x720)
Image SettingRotate Mode, Saturation, Brightness, Contrast, Sharpness
BLCSupport, Zone Configurable
ROI CodecSupport

Network
Network Storage NAS (Support NFS, SMB/CIFS), ANR
Alarm TriggerIntrusion Detection, Line Crossing Detection, Motion Detection, Tampering Alarm
ProtocolsTCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP
StandardONVIF, PSIA, CGI, ISAPI
GeneralOne-key reset, Dual stream, Privacy mask, User Authentication, Watermark

General
Operating Conditions -30°C ~ 60°C (-22°F ~ 140°F)
Power Supply12VDC, PoE (802.3af)
Power Consumption Max. 5W
Ingress ProtectionIP66
IR RangeApprox. 30 FT
Dimension 4" x 3.9" x 2.07"
Weight 2 LBS
