Description

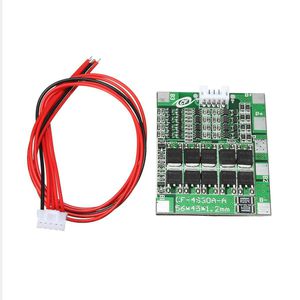

Module:4S Li-ion Lithium Battery Protection Board overcharge detection voltage :4.25±0.025V overcharge Lift the voltage:4.15±0.05V over discharge detection voltage :2.50±0.08V over discharge Lift the voltage:3.00±0.1V overcurrent current:20-30A working current:15A(Natural cooling 10.A, add heat sink 15A, the maximum instantaneous current 30A) Remove protection condition automatic recovery, without activation Size:56mm*45mm*3mm Protections: Short circuit protection Overcharge protection Over-discharge protection Overcurrent protection operating temperature:-30-80c Quantity:1Set
4S 30A 12V-14.8V Li-ion Lithium 18650 Battery BMS Packs PCB Protection Board
Price is below average
Current Price
$9.74
Average
$9.88
Min Price
$9.74
Max Price
$9.99
Price dynamics
1%
Description
Module:4S Li-ion Lithium Battery Protection Board overcharge detection voltage :4.25±0.025V overcharge Lift the voltage:4.15±0.05V over discharge detection voltage :2.50±0.08V over discharge Lift the voltage:3.00±0.1V overcurrent current:20-30A working current:15A(Natural cooling 10.A, add heat sink 15A, the maximum instantaneous current 30A) Remove protection condition automatic recovery, without activation Size:56mm*45mm*3mm Protections: Short circuit protection Overcharge protection Over-discharge protection Overcurrent protection operating temperature:-30-80c Quantity:1Set
