Description

Description:

This amplifier has a wide frequency range of 5-3500MHz, and large dynamic range +20dBm@1dBP. It has stable gain 20dB typical, and small noise figure 1.3dB typical.

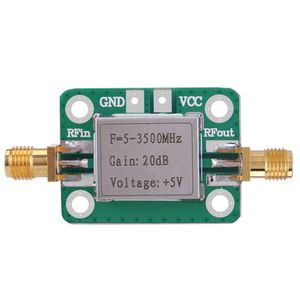

The broadband low noise RF amplifier is designed with shielding shell. It is especially suitable for all kinds of radio frequency receiving front-end circuit to extend communication distance. Widely used for short wave, FM radio, remote control receiver, cable TV signal amplifier, GPS satellite navigation, 2.4G bluetooth and WIFI receiver RF front-end that need low noise small signal RF to be amplified.

Specifications:

Working Frequency: 5-3500MHz

Gain: 20dB(typical)

Noise Figure: 1.3(typical)

Max. Output Power: +20dBm (100mW)@1dB compression point

Working Current: 80mA (5V)

Power Supply Voltage: 3.3-6VDC

System Impedance: 50Ω

Connector: SMA

Test Data:

F=5Mhz

gain=23dB

F=30Mhz

gain=23dB

F=100Mhz

gain=23dB

F=150Mhz

gain=23dB

F=420Mhz

gain=22dB

F=1500Mhz

gain=20dB

F=3000Mhz

gain=18.7dB

F=3500Mhz

gain=17.6dB

Package Includes:

1 x Amplifier

5-3500MHz RF WideBand Amplifier 20dB High Gain Low Noise LNA Amplifier with Shielding Shell

Current Price

$12.79

Average

$9.77

Min Price

$6.49

Max Price

$13.99

Price dynamics

24%
