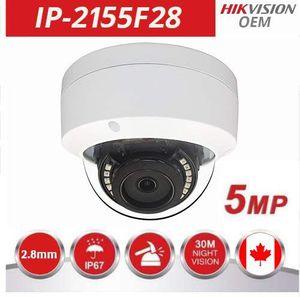

5MP True WDR Fixed Mini Dome, Exterior
✔5MP (2592x1944) Resolution
✔2.8mm Fixed Lens
✔H.265+ Video Compression
✔Intrusion Detection, Line Crossing Detection
✔Approx. 100 FT IR Range
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination 0.01 Lux @ (F1.2, AGC On), 0.0 Lux with IR
Lens 2.8mm @ F1.2, angle of view: 102°
Lens Mount M12
Day & Night IR Cut Filter With Auto Switch
Digtal Noise Reduction 3D DNR
Compression Standard
Video Compresson H.265+ / H.264 / MJPEG
H.265 Type Main Profile
Video Bit Rate 32 Kbps - 16 Mbps
Max. Resolution 2592 x 1944
Frame Rate 50 Hz: 18 FPS (2560x1920, 2048x1536, 1920x1080) 60 Hz: 20 FPS (3840x2160), 30 FPS (2560x1920, 2048x1536, 1920x1080)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness
Day/Night Switch Auto / Schedule / Triggered by Alarm In
Network
Network Storage NAS (Support NFS, SMB/CIFS), ANR
Alarm Trigger Intrusion Detection, Line Crossing Detection, Motion Detection, Tampering Alarm
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP
Standard ONVIF, PSIA, CGI, ISAPI
General
Operating Conditions -30°C ~ 60°C (-22°F ~ 140°F)
Power Supply 12VDC, PoE (802.3af)
Power Consumption Max. 9W
Ingress Protection IP67
IR Range Approx. 100 FT
Dimension Ø 4.4″x3.2″
Weight 1.5 LBS
