Package Including:

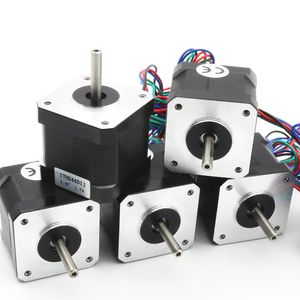

5 x 17HS4401J Nema17 Stepper Motor with a 1 metre long power cable with a 4-pin connector

Stepper motor Specification:

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg.

Holding Torque: 0.45Nm(64oz.in)

Rated Current:1.7A

Frame Size:1.6 x 1.5 x 1.6 inches

Size (L * W * H): ca. 42 * 42 * 40mm

Weight: 380g

features

Nema17 Stepper Motor 64 oz.in (45 Ncm) 40mm Body 1.8 degree with 1M 4-pin Cable DIY 3D Printer CNC Robot.

It's ideal for the RepRap Prusa, Mendel 90, Rostock and similar 3D printers, as well as CNC and robotics applications.

This is high torque Nema 17 stepper motor with 1.8 deg.Rated Current is 1.7A, holding torque of 45Ncm(64oz.in).

The motor is supplied with a 1 metre long power cable with a 4-pin connector already fitted - ready to plug and print!

Connection: Black(A+), Green(A-), Red(B+), Blue(B-).
