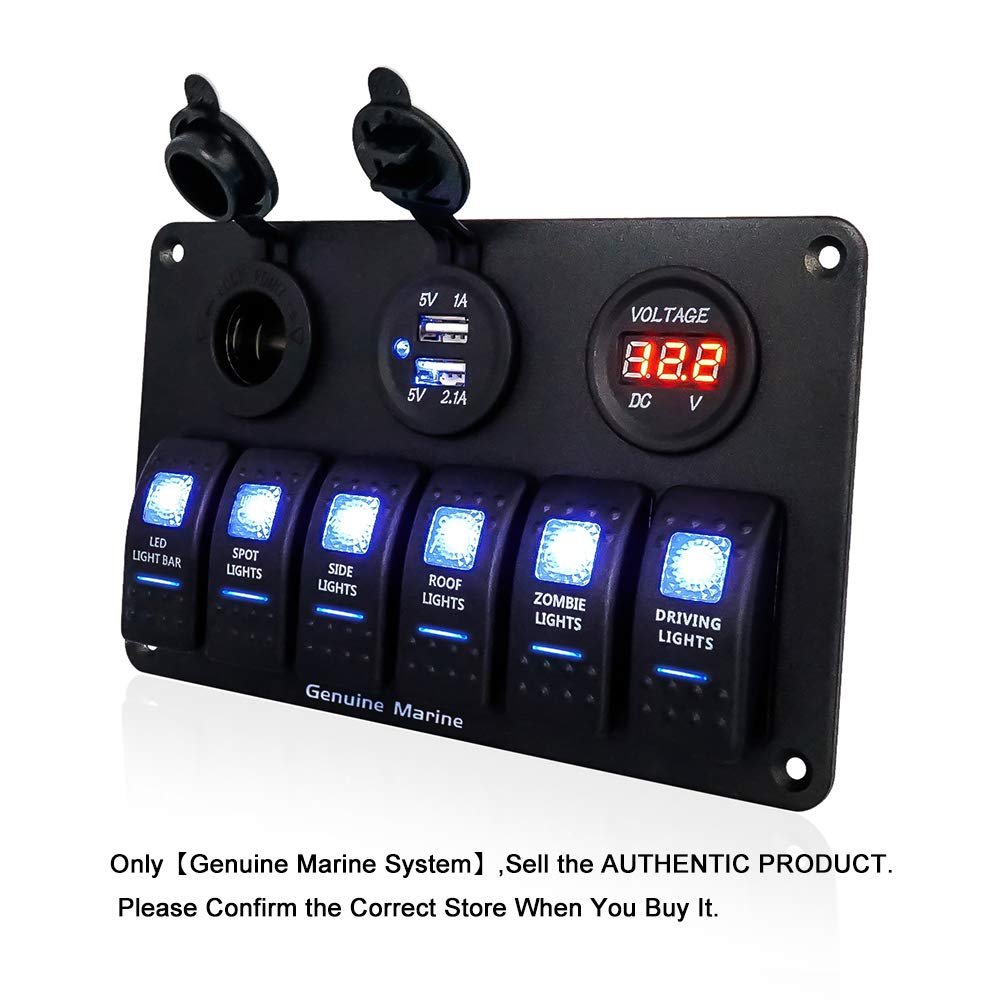

What are the advantages of our 5pin 6 Gang Marine Ignition Toggle Rocker Switch Panel ?
❶Rocker switch panel and the slot waterproof hat, rubber sealed cap make it watertight
❷Two 5V USB ports are sufficient to meet power charge demand
❸Digital voltage display helps user to monitor machine electrical safety
❹Universally fit for both 12V and 24V vehicles, such as marine, boat, caravan, bus
❺Easily Installed by its pre-wired wiring harness
❻Can be DIY to control any vehicle electrical appliance
Specification:
Voltage: 12V-24V
Max Output Power: 240W
Overload protection: 12V 20A DC; 24V 10A DC
Operating Temperature: -25 degree to 80 degree
Certificate: CE Approved
LED Color: Blue
Fuse: 1.5A
Product type: Marine Boat Car DIY Modify Switch Panel
Function: With Fuse, 12V Power Voltmeter and USB Socket
3-bit Digital Voltmeter Disply:
Help user pay attention to the voltage situation, ensure the Equipment Safety
Rocker Switch:
Loop Circuit: ON-OFF
Maximum power: 240W
Input voltage: DC12/ 24V
Dual USB Port:
-Working voltage:12-24V
-Output current:3.1A
-Output voltage:5V
Wiring instruction:
●The red and blue wire---Connect to the cathode of the storage battery
●The black and yellow wire---Connect to the anode of the storage battery
Effortless to install: Pre-wired needed wiring kit for Simple Flush Mount and Breeze Installation, black to ground and red to hot wire (Hint: connect the voltmeter located wire to a separate toggle switch in case of drained battery)
Package Included:
●1x Switch Pane
●1x Wiring Diagram
●1*Stainless Steel Screws(6 pieces )
●No Include gasket and label
