Description
Specifications:
Working frequency: 0.1M-2G
Power gain: 60dB @ 500M
Noise figure NF: 2dB @ 300M
Maximum output power: +10 dBm (10mW) @ 1dB compression point
Working current: 70mA (12V)
Supply voltage: 12V recommended, (9-15V)
System Impedance: 50 ohms
Size: 7.5 x 3cm / 2.95 x 1.18in
Weight: 7g
Package included:
1 x RF Amplifier

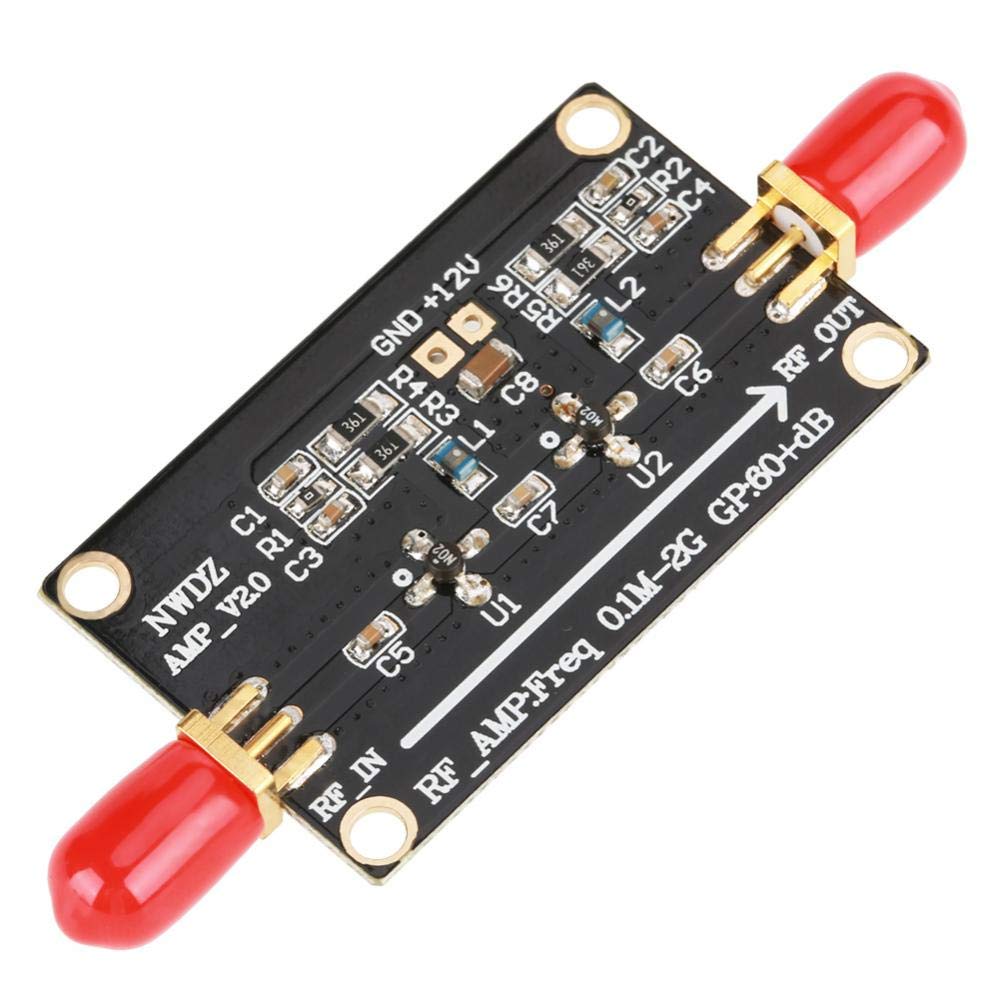

60dB RF Broadband Amplifier Preamplifier LNA 0.1M-2G Gain Two-Stage Amplification
Current Price
$13.69
Average
$13.29
Min Price
$12.89
Max Price
$13.69
Price dynamics
3%
Description
Specifications:
Working frequency: 0.1M-2G
Power gain: 60dB @ 500M
Noise figure NF: 2dB @ 300M
Maximum output power: +10 dBm (10mW) @ 1dB compression point
Working current: 70mA (12V)
Supply voltage: 12V recommended, (9-15V)
System Impedance: 50 ohms
Size: 7.5 x 3cm / 2.95 x 1.18in
Weight: 7g
Package included:
1 x RF Amplifier
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
