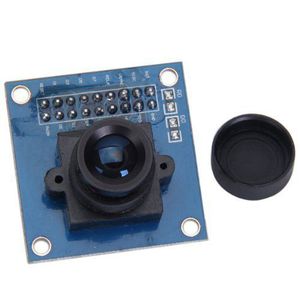

640 x 480 CMOS OV7670 Camera Module with Lens

This is my LiveOV7670 project I made about one and a half years ago Back then I designed the PCB to make this project more robust during the development But now I'm going to recreate it on a breadboard These are all the required components Besides Arduino, camera, and the screen you also need a bunch of wires two 10k resistors for the I2C connection to the camera and six pairs of 1-kilo ohm and 680-ohm resistors To get 5-volt signal from Arduino to 3 volts for the screen and for the camera I shorted J1 on the back of the screen since we are going to power it with 3 volts Power-rail for ground The screen's resent pin - pin 1 goes to pin 10 on Arduino Now for the voltage divider 1k resistor to the ground 680-ohm resistor between the pins And repeat the same process for the rest of the screen's signal pins Chip-select pin to Arduino pin 9 Command pin to Arduino pin 8 SPI data pin to Arduin
