Description
Camera
Image Sensor: 1/2.9" 6Megapixel progressive scan CMOS
Effective Pixels: 3072(H) x 2048(V)
Scanning System:Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Min. Illumination: 0.01Lux/F2.0 (Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
Adjust the angle: Level : 0 ° ~ 360 °, Vertical : 0 ° ~ 65 °
Camera Features
Max. IR LEDs Length:30m
Day/Night:Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR White Balance Auto/Manual
Gain Control:Auto/Manual
Noise Reduction:3D
Privacy Masking:Up to 4 areas
Lens
Fixed lens:2.8mm
Max Aperture: F2.0
Angle of View: H: 112°,V:69°
Lens Type :Fixed lens
Mount Type:Board-in Type
Video
Compression:H.265;H.264;H.264H;H.264B;MJPEG Frame Rate;Main Stream
Resolution:50HZ:Main (3072×2048@20fps),Sub(704×576@20fps),Third(1280×720@6fps)
Main(2592×1944@25fps),Sub(704×576@25fps),Third(1280×720@4fps) 60Hz:
Main(3072×2048@20fps),Sub(704×480@20fps),Third(1280×720@7fps)
Main(2688×1520@30fps),Sub(704×480@30fps),Third(1280×720@10fps)
Audio:built-in Mic
Main Stream: 4M(1~20fps)/3M(1~25/30fps)
Sub Stream: D1/CIF(1 ~ 25/30fps)
Third Stream: 720P(1-5/8fps)(WDR on) & 720P(1-18/2fps)(WDR off)
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Compatibility: ONVIF,PSIA,CGI
Max. User Access :20users
Smart Phone: iPhone, iPad, Android
Auxiliary Interface
RS485:N/A
Alarm:N/A
PIR Sensor Range:N/A
General
Power Supply: DC12V, PoE (802.3af)
Power Consumption:Max 3.6W
Ingress Protection: IP67
Dimensions :Φ157mm×138mm
Weight: 660g
Image Sensor: 1/2.9" 6Megapixel progressive scan CMOS
Effective Pixels: 3072(H) x 2048(V)
Scanning System:Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Min. Illumination: 0.01Lux/F2.0 (Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
Adjust the angle: Level : 0 ° ~ 360 °, Vertical : 0 ° ~ 65 °
Camera Features
Max. IR LEDs Length:30m
Day/Night:Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR White Balance Auto/Manual
Gain Control:Auto/Manual
Noise Reduction:3D
Privacy Masking:Up to 4 areas
Lens
Fixed lens:2.8mm
Max Aperture: F2.0
Angle of View: H: 112°,V:69°
Lens Type :Fixed lens
Mount Type:Board-in Type
Video
Compression:H.265;H.264;H.264H;H.264B;MJPEG Frame Rate;Main Stream
Resolution:50HZ:Main (3072×2048@20fps),Sub(704×576@20fps),Third(1280×720@6fps)
Main(2592×1944@25fps),Sub(704×576@25fps),Third(1280×720@4fps) 60Hz:
Main(3072×2048@20fps),Sub(704×480@20fps),Third(1280×720@7fps)
Main(2688×1520@30fps),Sub(704×480@30fps),Third(1280×720@10fps)
Audio:built-in Mic
Main Stream: 4M(1~20fps)/3M(1~25/30fps)
Sub Stream: D1/CIF(1 ~ 25/30fps)
Third Stream: 720P(1-5/8fps)(WDR on) & 720P(1-18/2fps)(WDR off)
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Compatibility: ONVIF,PSIA,CGI
Max. User Access :20users
Smart Phone: iPhone, iPad, Android
Auxiliary Interface
RS485:N/A
Alarm:N/A
PIR Sensor Range:N/A
General
Power Supply: DC12V, PoE (802.3af)
Power Consumption:Max 3.6W
Ingress Protection: IP67
Dimensions :Φ157mm×138mm
Weight: 660g

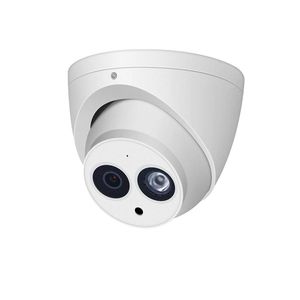

6MP IP Network Dome Security POE Camera, IPC-HDW4631C-A 2.8mm Lens with Wide Viewing Angle, Night Vision, Smart H.265 Security, IP67 Weatherproof, ONVIF, Surveillance CCTV Camera
Price is below average
Current Price
$65.99
Average
$71.11
Min Price
$65.99
Max Price
$80.25
Price dynamics
7%
Description
Camera
Image Sensor: 1/2.9" 6Megapixel progressive scan CMOS
Effective Pixels: 3072(H) x 2048(V)
Scanning System:Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Min. Illumination: 0.01Lux/F2.0 (Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
Adjust the angle: Level : 0 ° ~ 360 °, Vertical : 0 ° ~ 65 °
Camera Features
Max. IR LEDs Length:30m
Day/Night:Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR White Balance Auto/Manual
Gain Control:Auto/Manual
Noise Reduction:3D
Privacy Masking:Up to 4 areas
Lens
Fixed lens:2.8mm
Max Aperture: F2.0
Angle of View: H: 112°,V:69°
Lens Type :Fixed lens
Mount Type:Board-in Type
Video
Compression:H.265;H.264;H.264H;H.264B;MJPEG Frame Rate;Main Stream
Resolution:50HZ:Main (3072×2048@20fps),Sub(704×576@20fps),Third(1280×720@6fps)
Main(2592×1944@25fps),Sub(704×576@25fps),Third(1280×720@4fps) 60Hz:
Main(3072×2048@20fps),Sub(704×480@20fps),Third(1280×720@7fps)
Main(2688×1520@30fps),Sub(704×480@30fps),Third(1280×720@10fps)
Audio:built-in Mic
Main Stream: 4M(1~20fps)/3M(1~25/30fps)
Sub Stream: D1/CIF(1 ~ 25/30fps)
Third Stream: 720P(1-5/8fps)(WDR on) & 720P(1-18/2fps)(WDR off)
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Compatibility: ONVIF,PSIA,CGI
Max. User Access :20users
Smart Phone: iPhone, iPad, Android
Auxiliary Interface
RS485:N/A
Alarm:N/A
PIR Sensor Range:N/A
General
Power Supply: DC12V, PoE (802.3af)
Power Consumption:Max 3.6W
Ingress Protection: IP67
Dimensions :Φ157mm×138mm
Weight: 660g
Image Sensor: 1/2.9" 6Megapixel progressive scan CMOS
Effective Pixels: 3072(H) x 2048(V)
Scanning System:Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Min. Illumination: 0.01Lux/F2.0 (Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
Adjust the angle: Level : 0 ° ~ 360 °, Vertical : 0 ° ~ 65 °
Camera Features
Max. IR LEDs Length:30m
Day/Night:Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR White Balance Auto/Manual
Gain Control:Auto/Manual
Noise Reduction:3D
Privacy Masking:Up to 4 areas
Lens
Fixed lens:2.8mm
Max Aperture: F2.0
Angle of View: H: 112°,V:69°
Lens Type :Fixed lens
Mount Type:Board-in Type
Video
Compression:H.265;H.264;H.264H;H.264B;MJPEG Frame Rate;Main Stream
Resolution:50HZ:Main (3072×2048@20fps),Sub(704×576@20fps),Third(1280×720@6fps)
Main(2592×1944@25fps),Sub(704×576@25fps),Third(1280×720@4fps) 60Hz:
Main(3072×2048@20fps),Sub(704×480@20fps),Third(1280×720@7fps)
Main(2688×1520@30fps),Sub(704×480@30fps),Third(1280×720@10fps)
Audio:built-in Mic
Main Stream: 4M(1~20fps)/3M(1~25/30fps)
Sub Stream: D1/CIF(1 ~ 25/30fps)
Third Stream: 720P(1-5/8fps)(WDR on) & 720P(1-18/2fps)(WDR off)
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Compatibility: ONVIF,PSIA,CGI
Max. User Access :20users
Smart Phone: iPhone, iPad, Android
Auxiliary Interface
RS485:N/A
Alarm:N/A
PIR Sensor Range:N/A
General
Power Supply: DC12V, PoE (802.3af)
Power Consumption:Max 3.6W
Ingress Protection: IP67
Dimensions :Φ157mm×138mm
Weight: 660g
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
[Music] hi in this video I'm going to unbox and review the Dower IPC hdw 46 31 c IP camera so this is the model number for your reference and this is a 6 megapixel camera it's got a single IR light LED it's a two point eight millimeter although you can get it in a three point six or a six millimeter it has faced the same detection capabilities depending on the software that you have on your in VR and can give you up to three or seven two by two or four eight resolution at 20 frames per second but some unboxing it you're going to get the screwdriver here this is a Torx screwdriver there's some other documentation there the chrome it over your when you do your Ethernet connection well this will be on the other side and you will just pull this up and that's your watertight it's a net connection and if you do not use power of a thin it and you have a separate power cable or there you'll plu
