Description

The Model 712 series Alternating Relay is designed for duplex pumping systems where it is desirable to equalize pump run time. The solid state alternating circuit drives an internal electromechanical relay. A continuous power source and control switch are required. The control switch (float, pressure or other isolated contact) is connected between the L1 terminal and the control terminal. Each time the control switch is opened the output contacts will change status. Indicator lights on the case show the internal relay status. Setting the top toggle switch to Load 1 or Load 2 will lock the relay in position, preventing alternation. Offers a "one stop solution" for your pump management system. Several configurations available to meet your individual needs. Switching capabilities up to 12 amps. Two LED status indicators; indicate status of the separate loads independently. Dual Voltage Coils eliminate the need to specify AC or DC (AC only for 240 volts). Only 36 mm's wide; does not take up any additional room on the DIN rail. Color and appearance designed for high visibility in all environments. Engineering availability allows for customized control system solutions. http://www.onlinecomponents.com/datasheet/712xbxc120v.aspx?p=11722537

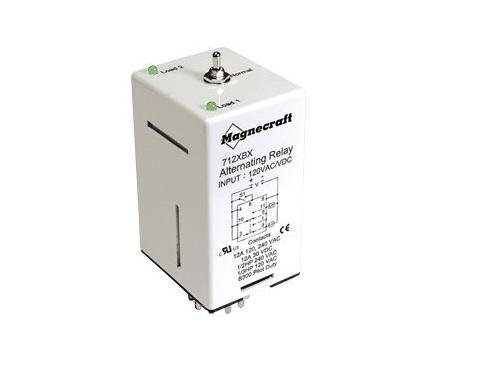

712XBXCK-120V Electromechanical Relay 120VDC 120VAC 12A DPDT (44x36)mm Socket Alternating Relay

Current Price

$105.99

Average

$100.27

Min Price

$68.82

Max Price

$105.99

Price dynamics

5%

Description

The Model 712 series Alternating Relay is designed for duplex pumping systems where it is desirable to equalize pump run time. The solid state alternating circuit drives an internal electromechanical relay. A continuous power source and control switch are required. The control switch (float, pressure or other isolated contact) is connected between the L1 terminal and the control terminal. Each time the control switch is opened the output contacts will change status. Indicator lights on the case show the internal relay status. Setting the top toggle switch to Load 1 or Load 2 will lock the relay in position, preventing alternation. Offers a "one stop solution" for your pump management system. Several configurations available to meet your individual needs. Switching capabilities up to 12 amps. Two LED status indicators; indicate status of the separate loads independently. Dual Voltage Coils eliminate the need to specify AC or DC (AC only for 240 volts). Only 36 mm's wide; does not take up any additional room on the DIN rail. Color and appearance designed for high visibility in all environments. Engineering availability allows for customized control system solutions. http://www.onlinecomponents.com/datasheet/712xbxc120v.aspx?p=11722537

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
