Camera
Image Sensor:1/2.5" Progressive Scan CMOS
Signal System:PAL/NTSC
Shutter time:1/3 s to 1/100,000 s
Slow shutter:Support
Lens:4mm
Lens Mount:M12
Day& Night:IR cut filter with auto switch
IR Range:Up to 30m
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Compression Standard
Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:32Kbps~16Mbps
Triple Streams:Yes
Max. Image Resolution:3840 × 2160
Image Enhancement:BLC/3D DNR
Image Settings:Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI:Support 1 fixed region for main stream and sub stream separately
Day/Night Switch:Auto/Scheduled
Network
General Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface:1 RJ45 10M / 100M Ethernet interface
On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis:Line crossing detection, Intrusion detection,
Unattended baggage detection, Object removal detection
Line Crossing Detection:Cross a pre-defined virtual line
Intrusion Detection:Enter and loiter in a pre-defined virtual region
Unattended Baggage:Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:Objects removed from the pre-defined region, such as the exhibits on display.
Recognition:Face Detection
General
Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Consumption:12 VDC ± 25%, 6.2W

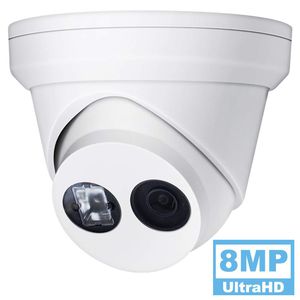

8MP UltraHD 4K Dome POE IPCamera, OEM DS-2CD2385FWD-I 4mm Lens, WDR EXIR Network Turret Security Outdoor Camera with 98ft Night Vision, H.265+, IP67, ONVIF, SD Card Slot
Camera
Image Sensor:1/2.5" Progressive Scan CMOS
Signal System:PAL/NTSC
Shutter time:1/3 s to 1/100,000 s
Slow shutter:Support
Lens:4mm
Lens Mount:M12
Day& Night:IR cut filter with auto switch
IR Range:Up to 30m
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Compression Standard
Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:32Kbps~16Mbps
Triple Streams:Yes
Max. Image Resolution:3840 × 2160
Image Enhancement:BLC/3D DNR
Image Settings:Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI:Support 1 fixed region for main stream and sub stream separately
Day/Night Switch:Auto/Scheduled
Network
General Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface:1 RJ45 10M / 100M Ethernet interface
On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis:Line crossing detection, Intrusion detection,
Unattended baggage detection, Object removal detection
Line Crossing Detection:Cross a pre-defined virtual line
Intrusion Detection:Enter and loiter in a pre-defined virtual region
Unattended Baggage:Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:Objects removed from the pre-defined region, such as the exhibits on display.
Recognition:Face Detection
General
Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Consumption:12 VDC ± 25%, 6.2W
