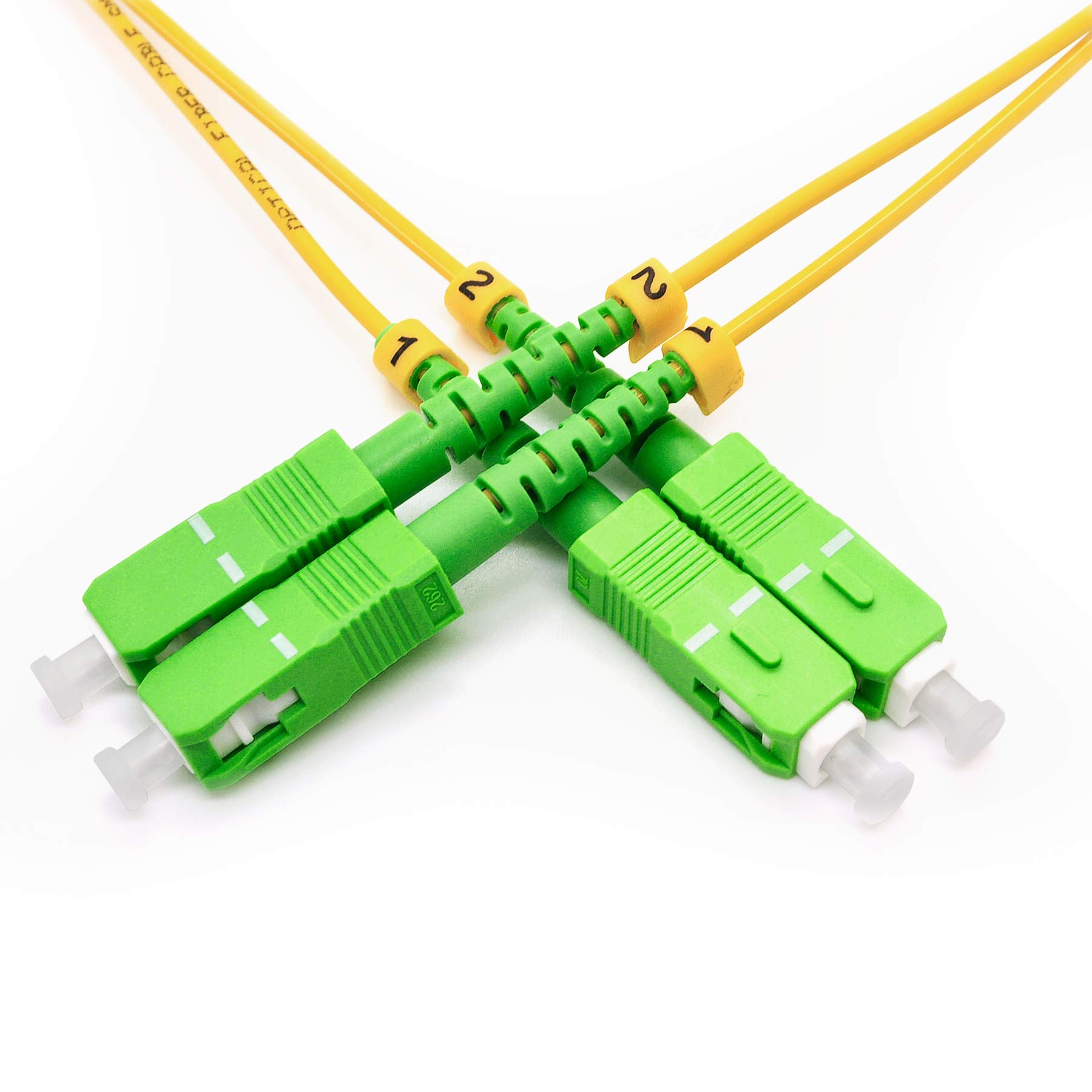

2m (6ft) SC APC to SC APC Duplex Fiber Optic Patch Cable SM - Single Mode

this installation video is applicable for afl's splice on sc/apc fuse connect connectors on two and three millimeter diameter simplex cable these step-by-step instructions demonstrate the termination of a three millimeter sc/apc fuse connect connector using a Fuji Korra 70 s fusion splicer the sc/apc connector includes the following materials a boot unit a protective sleeve a ferrule unit a connector body connector housing and a dust cap always wear safety glasses and properly dispose of fiber shards when handling and cleaving optical fibers begin by placing the cable into the three millimeter cable clamp approximately ten inches from the end of the cable and engage the clamp slide the boot unit and the protective sleeve onto the cable using the template on the front of the connector packaging mark the cable at 35 millimetres from the end of the cable strip 35 millimetres of 3 millimete
