Description
Bulk packing. Included 3 units. Inside: Each one unit in an independent anti-static bag with label.
Motor Driver L298N for Arduino with Logic control system allows to control of 2 DC-motors, to control rotational speed, rotational direction, to stop motors with freewheeling or to block their action. You can control each motor. Also, you may drive bipolar step motor current up to 4A.
Motor Driver L298N for Arduino is based on L298N chip with voltage 5-36V and peak current up to 2A on each motor (channel).
The driver has LED indicating rotational direction of each motor.
Speed regulation is realized through PWM default mode, a signal can be applied by PWM Arduino outputs 10 and 11 (digital outputs complying PWM).
It has 2 modes of rotational control:
Direct control: Motor 1 - outputs: 8, 9, 10(PWM)/ Motor 2 - outputs: 11(PWM), 12, 13;
Logic control: Motor 1 - outputs: 9, 10(PWM)/ Motor 2 - outputs: 11(PWM), 13.
Use shield switches to change control mode. There is an individual switch for each channel.
The direct regulation provides control of the L298N driver and uses 3 Arduino outputs for each channel.
Using logic regulation give free digital Arduino outputs: 8 and 12. And used only 4 digital outputs.
Logic control table on the official detail page of the product.
Product official page:
https://robotdyn.com/motor-driver-2a-l298n-2-motorsl298n.html
RobotDyn(R) - registered trademark in USA.
Zhuhai RobotDyn Technology Co.,Ltd - Developer and manufacturer.
Motor Driver L298N for Arduino with Logic control system allows to control of 2 DC-motors, to control rotational speed, rotational direction, to stop motors with freewheeling or to block their action. You can control each motor. Also, you may drive bipolar step motor current up to 4A.
Motor Driver L298N for Arduino is based on L298N chip with voltage 5-36V and peak current up to 2A on each motor (channel).
The driver has LED indicating rotational direction of each motor.
Speed regulation is realized through PWM default mode, a signal can be applied by PWM Arduino outputs 10 and 11 (digital outputs complying PWM).
It has 2 modes of rotational control:
Direct control: Motor 1 - outputs: 8, 9, 10(PWM)/ Motor 2 - outputs: 11(PWM), 12, 13;
Logic control: Motor 1 - outputs: 9, 10(PWM)/ Motor 2 - outputs: 11(PWM), 13.
Use shield switches to change control mode. There is an individual switch for each channel.
The direct regulation provides control of the L298N driver and uses 3 Arduino outputs for each channel.
Using logic regulation give free digital Arduino outputs: 8 and 12. And used only 4 digital outputs.
Logic control table on the official detail page of the product.
Product official page:
https://robotdyn.com/motor-driver-2a-l298n-2-motorsl298n.html
RobotDyn(R) - registered trademark in USA.
Zhuhai RobotDyn Technology Co.,Ltd - Developer and manufacturer.

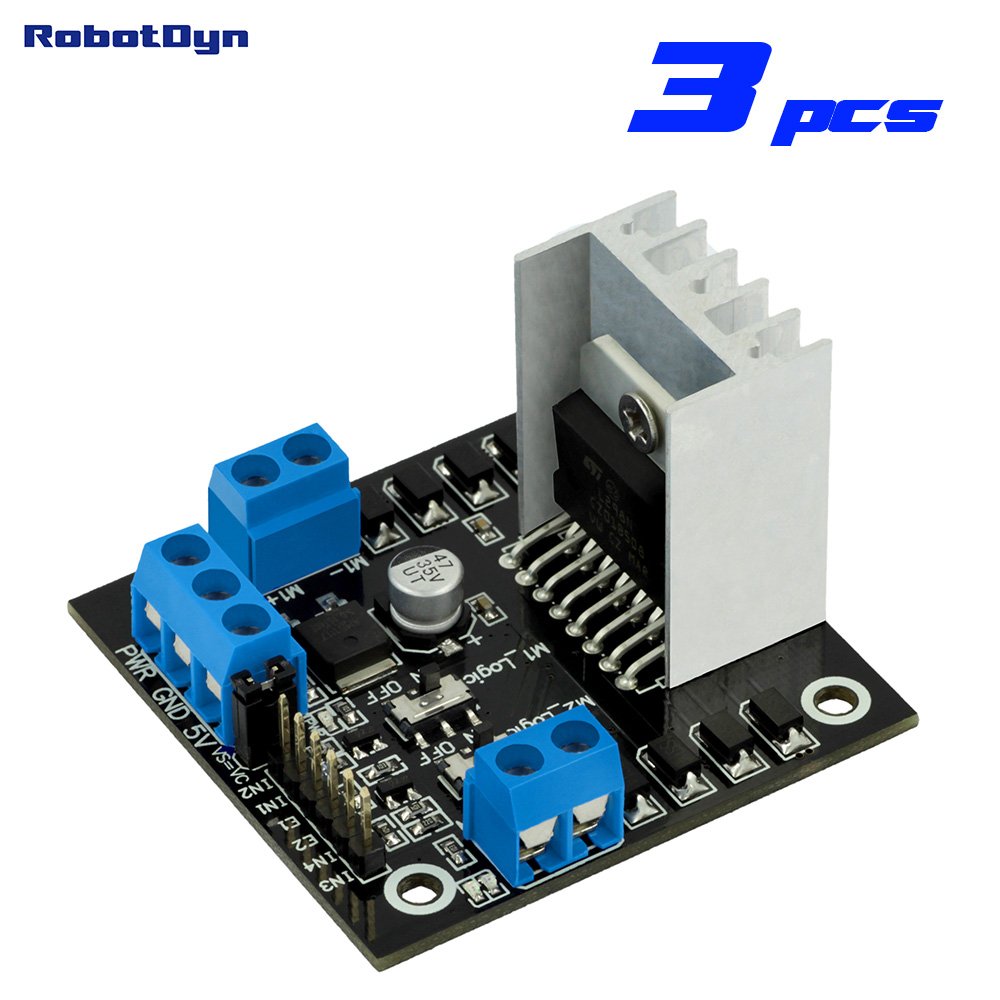

RobotDyn - 3 PCS - Motor Driver with Additional Logic System, L298N for 2 DC-Motors or 1 Stepper Motor (4A), for Arduino Uno, Mega, Leonardo, STM32, Raspberry pi
Current Price
$16.99
Average
$14.32
Min Price
$12.99
Max Price
$16.99
Price dynamics
16%
Description
Bulk packing. Included 3 units. Inside: Each one unit in an independent anti-static bag with label.
Motor Driver L298N for Arduino with Logic control system allows to control of 2 DC-motors, to control rotational speed, rotational direction, to stop motors with freewheeling or to block their action. You can control each motor. Also, you may drive bipolar step motor current up to 4A.
Motor Driver L298N for Arduino is based on L298N chip with voltage 5-36V and peak current up to 2A on each motor (channel).
The driver has LED indicating rotational direction of each motor.
Speed regulation is realized through PWM default mode, a signal can be applied by PWM Arduino outputs 10 and 11 (digital outputs complying PWM).
It has 2 modes of rotational control:
Direct control: Motor 1 - outputs: 8, 9, 10(PWM)/ Motor 2 - outputs: 11(PWM), 12, 13;
Logic control: Motor 1 - outputs: 9, 10(PWM)/ Motor 2 - outputs: 11(PWM), 13.
Use shield switches to change control mode. There is an individual switch for each channel.
The direct regulation provides control of the L298N driver and uses 3 Arduino outputs for each channel.
Using logic regulation give free digital Arduino outputs: 8 and 12. And used only 4 digital outputs.
Logic control table on the official detail page of the product.
Product official page:
https://robotdyn.com/motor-driver-2a-l298n-2-motorsl298n.html
RobotDyn(R) - registered trademark in USA.
Zhuhai RobotDyn Technology Co.,Ltd - Developer and manufacturer.
Motor Driver L298N for Arduino with Logic control system allows to control of 2 DC-motors, to control rotational speed, rotational direction, to stop motors with freewheeling or to block their action. You can control each motor. Also, you may drive bipolar step motor current up to 4A.
Motor Driver L298N for Arduino is based on L298N chip with voltage 5-36V and peak current up to 2A on each motor (channel).
The driver has LED indicating rotational direction of each motor.
Speed regulation is realized through PWM default mode, a signal can be applied by PWM Arduino outputs 10 and 11 (digital outputs complying PWM).
It has 2 modes of rotational control:
Direct control: Motor 1 - outputs: 8, 9, 10(PWM)/ Motor 2 - outputs: 11(PWM), 12, 13;
Logic control: Motor 1 - outputs: 9, 10(PWM)/ Motor 2 - outputs: 11(PWM), 13.
Use shield switches to change control mode. There is an individual switch for each channel.
The direct regulation provides control of the L298N driver and uses 3 Arduino outputs for each channel.
Using logic regulation give free digital Arduino outputs: 8 and 12. And used only 4 digital outputs.
Logic control table on the official detail page of the product.
Product official page:
https://robotdyn.com/motor-driver-2a-l298n-2-motorsl298n.html
RobotDyn(R) - registered trademark in USA.
Zhuhai RobotDyn Technology Co.,Ltd - Developer and manufacturer.
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
