AC input :
Input voltage : 90~132/180~264VAC Selectable OR 220~380VDC
Input frequency : 47 to 63Hz
Inrush current: 40A / 220VAC

DC output :
Output voltage : 48VDC
Output current : 0 to 10.4A
Ripple and noise : 480mV
Output power : 500W
Over-voltage protection : 64.6 to 71.4V DC
Efficiency : 88% ref

Output voltage : ±10% (adjustable)
Short-protection : auto-recovery
Overload protection : automatic power limited
Operating temperature : -15 to 50°C
Safety standards : UL508 meet
CE standards : EN 55032, EN 55024, EN 61000-3-3, (EN 61000-4-2, 3, 4, 5, 6, 8, 11), LVD: EN 60950-1

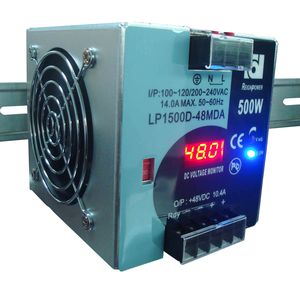

Traditionally, right range of output power of power supply can only be indicated by LED. However, this method is quite simple and rough, and is unable to display precisely, causing user cannot determine the cause of system failure. Reign Power din rail switching power supply monitors voltage which shows real time power stability. The solution can be intuitive and quick to decide whether the power products is running normally or not. As the result, can let the non-professional client directly determine product status and report back the reason is related to whether power quality or not. This can accelerate product maker services to client and get the reputation from market.

Reign Power digital type din rail power supply is specific product line, market competitor is few. With Reign Power digital type din rail power supply, manufactures can smoothly distinguish the market segment and elevate market position without price competition.
