1. Specification　

Image Sensor : 1/3" CMOS

DSP : Hi3516D

Minimum Illumination : Color: 0.05Lux, B/W: 0.005Lux,0 Lux with IR

3D NDR : Support

WDR : Support

Electronic Shutter : 1/25~1/100000

Day Night Mode : AUTO ICR Color to B/W

Focal Length : 5.4- 108mm，20X Optical Zoom

Digital Zoom : Support 16X Digital ZOOM

Zoom Speed : Approx.3s(Optical Wide~Tele)

Angle of View : 55.4-2.9 degree(Wide-Tele)

Resolution : 1920(H)x1080(V)

Main Stream : 25fps： (1920×108)

Sub Stream : 25fps：(704×576)、(640×480)、(648×360)

Video Compression : H.265/H.264

Network protocol : HTTP ,FTP,SMTP,UPnP,SNMP, DDNS,NTP,RTSP,RTP,TCP，DHCP, PPPoE

Interface protocol : ONVIF 2.4

IR Distance : 100m

Horizontal Range : 0°～360° continuously

Vertical Range : -15°～90°

Horizontal Speed : 0.05°～240°/s

Vertical Speed : 0.05°～180°/s

Max Speed : 240°/S

Preset : 256

Patrol scan : 4pcs（10 preset for each）

L/R Scan : 1pc

Horizontal Scan : 1pc

Power-off memory : Support

PARK Action : Watch position/ Area Scan /Horizontal 360°scan/ Cruise

Watch position : Support

Wide angle speed limi : Focus / speed automatic matching function

POE supply voltage : DC48V

POE supply PIN : 1,2(+)、3,6(-) / 4,5(+)、7,8(-) Auto adaptation

Power : DC12V/4A

Consumption : ＜22W

Mounting : Wall mounting Default

Work environment : temperature ：-20～60℃；humidity＜90%

Protection level : IP66 waterproof，4000V lightning protection

2. Package Included

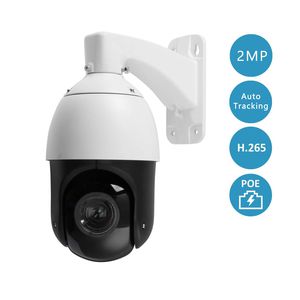

1x 1080P PTZ POE IP auto tracking Camera

1x Wall Bracket

1x Power Supply

1x User Manual
