Specification:
Battery type: 3.7V ternary cell, lithium manganate cell, lithium cobalt cell
Applicable voltage: 12V
Charge current: 10A (Max)
Discharge current: 100A
Max continuous working current: 60A
Overdischarge protection voltage: 2.6V
Overcharge protection voltage: 4.25V
Balance voltage: 4.2V
Balance current: 45mA
Weight: Approx. 47g
Package list:
1 * Lithium Battery Protection Board

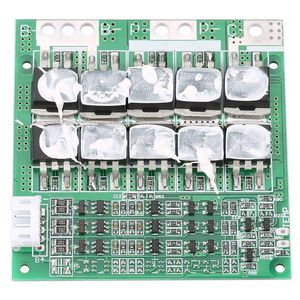

3S Lithium Battery Protection Board 12V 100A Lithium Cell Protection Board BMS PCB Board with Balance Charging
Specification:
Battery type: 3.7V ternary cell, lithium manganate cell, lithium cobalt cell
Applicable voltage: 12V
Charge current: 10A (Max)
Discharge current: 100A
Max continuous working current: 60A
Overdischarge protection voltage: 2.6V
Overcharge protection voltage: 4.25V
Balance voltage: 4.2V
Balance current: 45mA
Weight: Approx. 47g
Package list:
1 * Lithium Battery Protection Board
