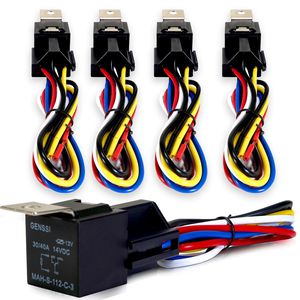

12V 5 Prong Relays with 5 Prong Sockets - You get 5 relays + 5 socket wires
These are your 'switch' contacts:
85 - RED
86 - YELLOW
When this circuit is completed the actuator will close 87 and open 87a.
30- BLACK
87- BLUE
87a- WHITE
Black is the power to your accessorie(s), 87 or 87a depending on whether the relay has power.
85, 86- Relay polarity shouldn't really matter.
30-12v
87-NO
87a-NC
For example, in a application of having the fog lights turn off when high beams are on:
30 - Low beam 12v
87a - Fog lights
85 - High beams 12v
86 - Ground
87 - Empty.
Genssi 30/40 AMP Auto LED Light Bar Relay Wiring Harness SPDT 12V 40A (Pack of 5)
12V 5 Prong Relays with 5 Prong Sockets - You get 5 relays + 5 socket wires
These are your 'switch' contacts:
85 - RED
86 - YELLOW
When this circuit is completed the actuator will close 87 and open 87a.
30- BLACK
87- BLUE
87a- WHITE
Black is the power to your accessorie(s), 87 or 87a depending on whether the relay has power.
85, 86- Relay polarity shouldn't really matter.
30-12v
87-NO
87a-NC
For example, in a application of having the fog lights turn off when high beams are on:
30 - Low beam 12v
87a - Fog lights
85 - High beams 12v
86 - Ground
87 - Empty.
