Description
Camera Features:
1. This camera have 4 MODE for video output: 1080p AHD, 1080p CVI, 1080p TVI and CVBS
2. Default MODE is AHD 1080P MODE, please change to corresponding VIDEO MODE by OSD cable according to your DVR. It supports 1080P TVI DVR,HD CVI DVR, AHD DVR, and 960H (D1.700TVL, 800TVL)DVR. It does not support NVR.
3. Camera resolution is 1080P. If connect to 720P DVR or 960H DVRS, it won't work. Please make sure your DVR supports 1080P TVI/CVI/AHD signal input.
4. If you want to remote view by App, you need to use the APP of your DVR
Trouble shooting:
1.If IMAGE normal in the day while vague or being interfered by horizontal stripes at night.
It is the reason that POWER is not enough or POWER cable is too long. Change power supply or shorten power cable.
2.If NO image , if it is Wrong connection to the video cable, you need reconnect;
if power gets problem, you need to change power supply;
if having not connected to power supply, you need to plug in.
Resolution: 2.6MP (1920x1080)
IR Distance: 36pcs Smart LEDs view 100 feet
Lens: 2.8-12mm Varifocal Zoom HD Lens
Video Output: HD AHD(1080P),(AHD/TVI/CVI/CVBS)
Day &Night: Support (ICR)
Frame Rate: 25fps (50HZ), 30fps (60Hz)
Power Supply: 12 Volts DC / 1000mA (NOT included but required)
Package included:
1 x Dome camera
1 x Bag of mounting screws
1 x Manual
1. This camera have 4 MODE for video output: 1080p AHD, 1080p CVI, 1080p TVI and CVBS
2. Default MODE is AHD 1080P MODE, please change to corresponding VIDEO MODE by OSD cable according to your DVR. It supports 1080P TVI DVR,HD CVI DVR, AHD DVR, and 960H (D1.700TVL, 800TVL)DVR. It does not support NVR.
3. Camera resolution is 1080P. If connect to 720P DVR or 960H DVRS, it won't work. Please make sure your DVR supports 1080P TVI/CVI/AHD signal input.
4. If you want to remote view by App, you need to use the APP of your DVR
Trouble shooting:
1.If IMAGE normal in the day while vague or being interfered by horizontal stripes at night.
It is the reason that POWER is not enough or POWER cable is too long. Change power supply or shorten power cable.
2.If NO image , if it is Wrong connection to the video cable, you need reconnect;
if power gets problem, you need to change power supply;
if having not connected to power supply, you need to plug in.
Resolution: 2.6MP (1920x1080)
IR Distance: 36pcs Smart LEDs view 100 feet
Lens: 2.8-12mm Varifocal Zoom HD Lens
Video Output: HD AHD(1080P),(AHD/TVI/CVI/CVBS)
Day &Night: Support (ICR)
Frame Rate: 25fps (50HZ), 30fps (60Hz)
Power Supply: 12 Volts DC / 1000mA (NOT included but required)
Package included:
1 x Dome camera
1 x Bag of mounting screws
1 x Manual

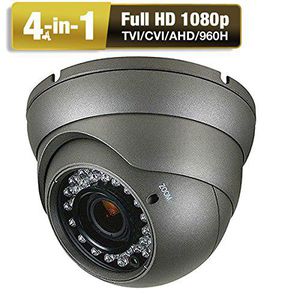

Amview HD1080P 4-in-1 2.8-12mm Varifocal Lens 36IR LEDs CCTV Surveillance Security Camera
Price is below average
Current Price
$37.45
Average
$40.37
Min Price
$25.89
Max Price
$52.5
Price dynamics
7%
Description
Camera Features:
1. This camera have 4 MODE for video output: 1080p AHD, 1080p CVI, 1080p TVI and CVBS
2. Default MODE is AHD 1080P MODE, please change to corresponding VIDEO MODE by OSD cable according to your DVR. It supports 1080P TVI DVR,HD CVI DVR, AHD DVR, and 960H (D1.700TVL, 800TVL)DVR. It does not support NVR.
3. Camera resolution is 1080P. If connect to 720P DVR or 960H DVRS, it won't work. Please make sure your DVR supports 1080P TVI/CVI/AHD signal input.
4. If you want to remote view by App, you need to use the APP of your DVR
Trouble shooting:
1.If IMAGE normal in the day while vague or being interfered by horizontal stripes at night.
It is the reason that POWER is not enough or POWER cable is too long. Change power supply or shorten power cable.
2.If NO image , if it is Wrong connection to the video cable, you need reconnect;
if power gets problem, you need to change power supply;
if having not connected to power supply, you need to plug in.
Resolution: 2.6MP (1920x1080)
IR Distance: 36pcs Smart LEDs view 100 feet
Lens: 2.8-12mm Varifocal Zoom HD Lens
Video Output: HD AHD(1080P),(AHD/TVI/CVI/CVBS)
Day &Night: Support (ICR)
Frame Rate: 25fps (50HZ), 30fps (60Hz)
Power Supply: 12 Volts DC / 1000mA (NOT included but required)
Package included:
1 x Dome camera
1 x Bag of mounting screws
1 x Manual
1. This camera have 4 MODE for video output: 1080p AHD, 1080p CVI, 1080p TVI and CVBS
2. Default MODE is AHD 1080P MODE, please change to corresponding VIDEO MODE by OSD cable according to your DVR. It supports 1080P TVI DVR,HD CVI DVR, AHD DVR, and 960H (D1.700TVL, 800TVL)DVR. It does not support NVR.
3. Camera resolution is 1080P. If connect to 720P DVR or 960H DVRS, it won't work. Please make sure your DVR supports 1080P TVI/CVI/AHD signal input.
4. If you want to remote view by App, you need to use the APP of your DVR
Trouble shooting:
1.If IMAGE normal in the day while vague or being interfered by horizontal stripes at night.
It is the reason that POWER is not enough or POWER cable is too long. Change power supply or shorten power cable.
2.If NO image , if it is Wrong connection to the video cable, you need reconnect;
if power gets problem, you need to change power supply;
if having not connected to power supply, you need to plug in.
Resolution: 2.6MP (1920x1080)
IR Distance: 36pcs Smart LEDs view 100 feet
Lens: 2.8-12mm Varifocal Zoom HD Lens
Video Output: HD AHD(1080P),(AHD/TVI/CVI/CVBS)
Day &Night: Support (ICR)
Frame Rate: 25fps (50HZ), 30fps (60Hz)
Power Supply: 12 Volts DC / 1000mA (NOT included but required)
Package included:
1 x Dome camera
1 x Bag of mounting screws
1 x Manual
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
This video demonstrates the variable range
of view and zoom of a 2.8- to 12-millimeter vocal lens using a Box security camera from
CCTV Camera Pros. On the left screen, we have the lens adjusted
to the 2.8-millimeter setting which is the widest view. The video on the right displays the lens adjusted
to the 12-millimeter setting, which is the most narrow and zoomed-in setting. The garbage dumpster in the background is
exactly 100 feet away from where the camera is mounted. In the 2.8-millimeter video, the man stops
eight feet in front of the camera. In the 12-millimeter video, the man stops
16 feet in front of the camera. Using a camera with a 2.8- to 12-millimeter
varifocal lens, security installers have the flexibility to adjust the lens to any angle
of view within that range. This video shows the extreme minimum and maximum
that this lens is capable of. In addition to being available
