Description

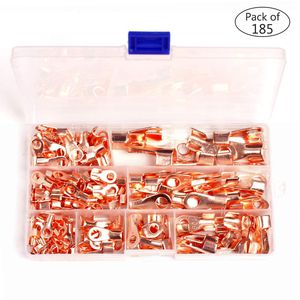

This is open barrel copper ring lug terminal assortment kit, including the OT-5A/10A/20A /30A/40A/50A/60A/100A 8 types 185 pieces in total. They are made from pure copper with good conductivity.

OT-5A Specifications:
Overall Length: 17.2mm
Tail Length: 6mm
Ring Diameter: 4.8mm(Inner), 8.5mm(outer)
Wire Section: 0.5-1.5mm2(AWG 22-16)
Quantity: 40pcs

OT-10A Specifications:
Overall Length: 19.2mm
Tail Length: 6.3mm
Ring Diameter: 5.2mm(Inner), 9.2mm(outer)
Wire Section: 1.5-4mm2(AWG 16-12)
Quantity: 50pcs

OT-20A Specifications:
Overall Length: 22.6mm
Tail Length: 7mm
Ring Diameter: 6.2mm(Inner), 10.3mm(outer)
Wire Section: 1.5-5mm2(AWG 16-8)
Quantity: 30pcs

OT-30A Specifications:
Overall Length: 24mm
Tail Length: 7.8mm
Ring Diameter: 6.2mm(Inner), 11mm(outer)
Wire Section: 2.5-6mm2(AWG 14-10)
Quantity: 10pcs

OT-40A Specifications:
Overall Length: 26mm
Tail Length: 8.6mm
Ring Diameter: 6.2mm(Inner), 12mm(outer)
Wire Section: 4-10mm2(AWG 10-8)
Quantity: 10pcs

OT-50A Specifications:
Overall Length: 28mm
Tail Length: 9mm
Ring Diameter: 6.2mm(Inner), 13.1mm(outer)
Wire Section: 4-10mm2(AWG 10-8)
Quantity: 15pcs

OT-60A Specifications:
Overall Length: 30mm
Tail Length: 9.6mm
Ring Diameter: 8.2mm(Inner), 14mm(outer)
Wire Section: 4-16mm2(AWG 10-5)
Quantity: 20pcs

OT-100A Specifications:
Overall Length: 36.5mm
Tail Length: 11.6mm
Ring Diameter: 8.2mm(Inner), 16.6mm(outer)
Wire Section: 10-25mm2
Quantity: 10pcs
