Description
Features:

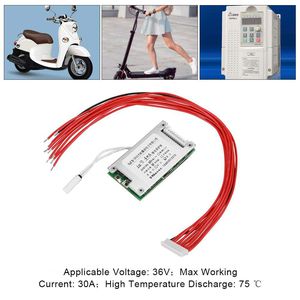

The protection board is for 10 series cell Li-ion batteries, it can be used for 3.7V ternary batteries, manganese acid batteries and cobalt acid batteries. It has balance function which would ensure each battery cell being fully charged at same time. Support overcharge protection, over-discharge protection and short circuit protection. It is suitable for electric car, electric power assistant car, skateboard car, inverter, etc With temperature control protection function, safe and reliable
Specifications:
Applicable voltage: 36V
Applicable power: <1000w
Max. working current: 30A
Continuous maximum current: 20A
Overdischarge protection voltage: 2.6v
Overcharge protection voltage: 4.25v
Charging current: max. 10A
Balance voltage: 4.2v
High temperature discharge: 75 ℃
Low temperature charge: - 7 ℃
Weight: 46g
Package included:
1 x Protection Board
1 x Cable
The protection board is for 10 series cell Li-ion batteries, it can be used for 3.7V ternary batteries, manganese acid batteries and cobalt acid batteries. It has balance function which would ensure each battery cell being fully charged at same time. Support overcharge protection, over-discharge protection and short circuit protection. It is suitable for electric car, electric power assistant car, skateboard car, inverter, etc With temperature control protection function, safe and reliable
Specifications:
Applicable voltage: 36V
Applicable power: <1000w
Max. working current: 30A
Continuous maximum current: 20A
Overdischarge protection voltage: 2.6v
Overcharge protection voltage: 4.25v
Charging current: max. 10A
Balance voltage: 4.2v
High temperature discharge: 75 ℃
Low temperature charge: - 7 ℃
Weight: 46g
Package included:
1 x Protection Board
1 x Cable
