Description

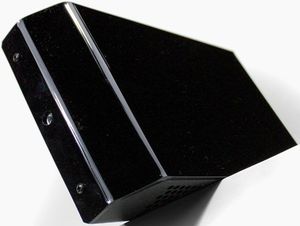

Williams Sound WIR TX90 SoundPlus 2-channel Infrared Transmitter; Resistant to high-efficiency lighting interference; Compatible with Dolby, DTS and Doremi systems for hearing assistance and audio description in cinema

The powerful WIR TX90 transmitter combines modulator and emitter technology into a single operating unit, which reduces operating costs, eliminates the need for rack space and eases set-up. The WIR TX90 features application pre-set controls for music, voice or hearing assistance applications - no guesswork required for audio configuration. Everything you need for installation is in the box

Key Features

Resistant to high-efficiency lighting interference
Compatible with Dolby, DTS and Doremi systems for hearing assistance and audio description in cinema
Line inputs
No radio license required
Made in USA
Includes: (1) WIR TX90 transmitter, (1) TFP 010 power supply, (1) WCA 079 50' power cable, (1) BKT 024 wall/ceiling mount and (1) IDP 008 ADA wall plaque

Specifications

Dimensions: 11.25"W x 6.25"H x 2.125"D
Weight: 1.8 lbs
Power Supply: Wall Transformer, 24 VAC, 50-60Hz, 35 VA, 3-pin MOLEX Connector
Power Cable: NEC Class 2 wiring, two-conductor, 18 ga, 200' (61m) max. length
Modulation: FM Wideband, +50kHz deviation max., 50uS pre-emphasis
Carrier Frequency: Channel A: Selectable 2.3/2.8 MHz, Channel B: Selectable 3.3/3.8 MHz
Emitter IR Power: 3.5 watts
Signal-to-Noise Ratio: >75 dB, +3 dB
Frequency Response: 80 to 15,000 Hz, electrical response
Total Harmonic Distortion: Less than 0.2%, electrical response at 1kHz
Auto Carrier Shut-Off: 20 minute timer shuts off carrier when no audio is present
Operating Requirements: 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere

Williams Sound WIR TX90 SoundPlus 2-channel Infrared Transmitter; Resistant to high-efficiency lighting interference; Compatible with Dolby, DTS and Doremi systems for hearing assistance and audio description in cinema

Price is below average

Get price

Current Price

$30

Average

$1 037.93

Min Price

$30

Max Price

$1 418

Price dynamics

97%

Description

Key Features

Resistant to high-efficiency lighting interference
Compatible with Dolby, DTS and Doremi systems for hearing assistance and audio description in cinema
Line inputs
No radio license required
Made in USA
Includes: (1) WIR TX90 transmitter, (1) TFP 010 power supply, (1) WCA 079 50' power cable, (1) BKT 024 wall/ceiling mount and (1) IDP 008 ADA wall plaque

Specifications

Dimensions: 11.25"W x 6.25"H x 2.125"D
Weight: 1.8 lbs
Power Supply: Wall Transformer, 24 VAC, 50-60Hz, 35 VA, 3-pin MOLEX Connector
Power Cable: NEC Class 2 wiring, two-conductor, 18 ga, 200' (61m) max. length
Modulation: FM Wideband, +50kHz deviation max., 50uS pre-emphasis
Carrier Frequency: Channel A: Selectable 2.3/2.8 MHz, Channel B: Selectable 3.3/3.8 MHz
Emitter IR Power: 3.5 watts
Signal-to-Noise Ratio: >75 dB, +3 dB
Frequency Response: 80 to 15,000 Hz, electrical response
Total Harmonic Distortion: Less than 0.2%, electrical response at 1kHz
Auto Carrier Shut-Off: 20 minute timer shuts off carrier when no audio is present
Operating Requirements: 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

[Music] Williams Sound Helping People Hear Since 1976 Hi and welcome. I'm Daryl Dankert, Technical Training Manager here at Williams Sound. You're about to view one of our informative videos featuring some of our many products that make us your Total Solutions Provider since 1976. I hope you find this video helpful and informative. The WIR TX75 Infrared Transmitter ensures participants in your venue receive clear, direct communication of your message without sacrificing security. The sleek and stylish WIR TX75 is designed to maximize coverage, up to 5,000 square feet, in the single channel mode when used with a WIR RX22-4 bodyback receiver. Two Slave emitters can be added for total coverage of 15,000 square feet allowing increased coverage and enhances freedom of movement. A single CAT5 cable carries both power and signal to Slave units. Truly a one cable connection. Mounting bracket an
