Description
Note:
(1) Only use for Full size MINI PCI-E interface, Do not use for NGFF interface, Do not use for desktop computer.
(2)Only USE for :
L420, L421, L430, L520,L530, T420, T420i, T420s, T420si,T430, T430i T430s, T430si, T520, T520i, T530, T530i, W520, W530, X121e, X130e, X131e, X1, X220, X220i, X220 Tablet, X220i X230 X230i Tablet, EDGE S430, E420, E430
(3) DO NOT USE FOR HP & DELL & OTHER LAPTOP.
Specifications
Device Dimensions 51 x 30 x 3.05 mm
P/N FRU:60Y3257
Air Interface HSPA+
EV-DO REV A
Frequency Bands HSPA 850/900/1900/2100MHZ
CDMA 800/1900 MHz
EDGE/GPRS/GSM 850/900/1800/1900 MHz
Approvals FCC, IC, CE, PTCRB, GCF, CDG, A-Tick, NCC, AT&T, Verizon, Sprint, Vodafone,Telefonica, Orange, TIM,T-Mobile (Europe)
Standby and Idle Power 1.3 - 3.7mA , GSM GPRS Max Power 2.7A
HSxPA Max Power 710 mA , UART No , USB 2.0 Highspeed
Flash LED Output 1 , SIM Interface 1.8 or 3.0V, Antenna Diversity Yes
Location Solution gps OneXTRA, Embedded SIM No
Control Options AT commands
Gobi API , Device Management No
Drivers Windows 7 , Windows XP , Windows Vista
Operational Temperature Normal Class A (-30 to +70)
Extended Class B (-40 to +85)
Package:

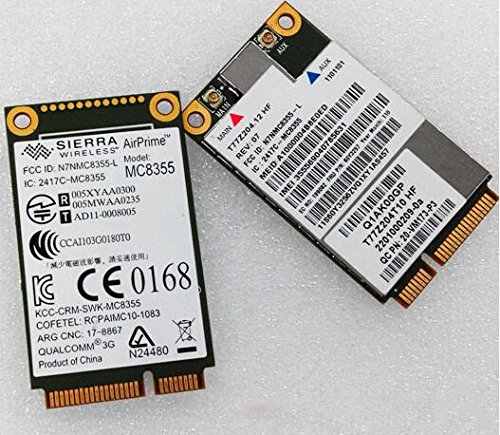

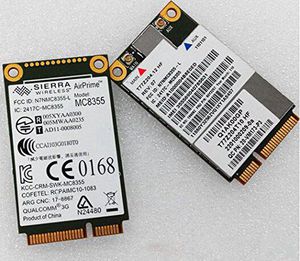

1 X Gb3000/MC8355
（driver not included）
