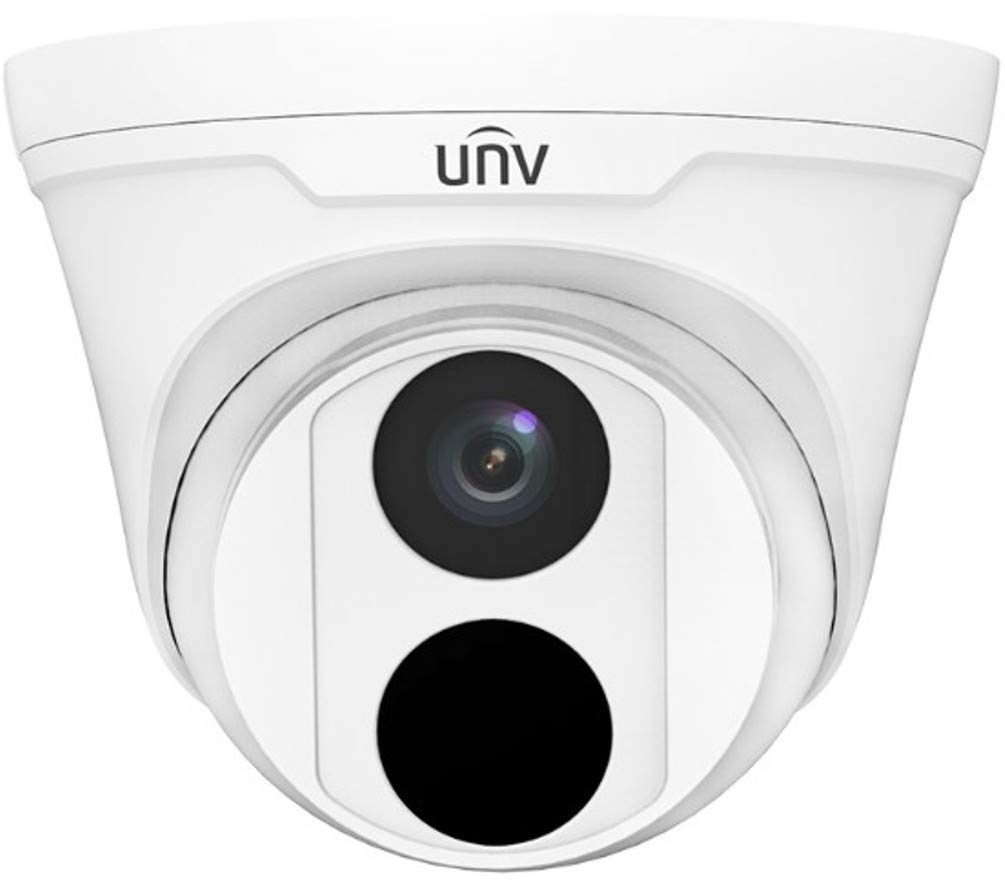

UNV UN-IPC3614LR3PF28D Fixed Dome Network Camera, 1/3" 4.0MP Progressive Scan CMOS, Smart IR, Up to 30m (98ft) IR Distance, 2.8mm@F2.0 Focal Length, 2D/3D DNR, ROI, 3-Axis, IP67

• Day/night functionality
• Smart IR, up to 30m (98ft) IR distance
• 2D/3D DNR (Digital Noise Reduction)
• Ultra 265, H.265, H.264, MJPEG
• ROI (Region of Interest)
• ONVIF Conformance
• Wide temperature range: -30°C to 60°C (-22°F to 140°F)
• Wide voltage range of ±25%
• IP67
• 3-Axis
• Brand Uniview and Comes with UNV Logo

• Image Sensor: 1/3" 4.0MP progressive scan CMOS
• Image Size: 2592x1520
• Electronic Shutter: Auto/Manual, 1~1/100000 s
• Minimum Illumination: Color: 0.03 Lux (F2.0, AGC ON), B/W: 0 Lux with IR on
• Focal Length: 2.8mm@F2.0
• S/N Ratio: > 52dB
• Angle of View: 104.4°H, 54.4°V, 135.7°O
• Angle Adjustment: Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
• Wide Dynamic Range: Up to 120dB WDR
• OSD: Yes
• Video Resolution: 4MP/3MP/2MP/1MP/D1
• Video Frame Rate: Main Stream: 4MP (2592x1520): Max. 20fps; Sub Stream: 720P (1280x720): Max. 30fps; Third Stream: D1 (720x576): Max. 30fps
• 9:16 Corridor Mode: Supported
• BLC Mode: Supported
• HLC: Supported
• ROI: Up to 2 areas
• Motion Detection: Up to 4 areas
• Privacy Masking: Up to 8 areas
• Ethernet: RJ45, 10M/100M Base-TX Ethernet
• Web Viewer: IE web browser
• Mobile: iPhone, Android
• Power Supply: 12 V DC±25%, PoE (IEEE802.3 af)
• Power Consumption: Max 4W
• Operating Temperature: -30°C~+60°C, Humidity: 10%~90% RH(non-condensing)
• Storage Temperature: -30°C~+60°C, Humidity: 10%~90% RH(non-condensing)
• Dimensions: 4.6"x3.8"
• Weight: 0.77lb
