Description
120W Single Output Industrial DIN RAIL Power Supply 12 Volts 10 Amps Features: • Wide input range 180 ~ 550VAC • Protections: Short circuit / Overload / Over voltage / Over temperature • Cooling by free air convection • Built-in constant current limiting circuit • Can be installed on DIN rail TS-35/7.5 or 15 • UL508(industrial control equipment)approved • EN61000-6-2(EN50082-2) industrial immunity level • 100% full load burn-in test • Built-in DC OK relay contact • 3 year warranty For more 12V power supplies . Detailed Specifications: • Primary Output Voltage (VDC): 12 • Output Current (A): 10 • Maximum Output Power (W): 120 • Family: WDR-120 • Input Voltage (VAC): 180 to 550 • Input Frequency: 47 to 63 • Maximum Input Current (A): 1.2 • Output Connector Type: Screw Terminal • Efficiency (%): 89.5 • Operating Temperature-Min (Cell): -25 • Operating Temperature-Max (Cell): 70 • Length (inch): 1.57 • Width (inch): 4.93 • Height (inch): 4.47 • Agency Approvals: UL/CUL/CB/CE • Color: Silver • Style: DIN.

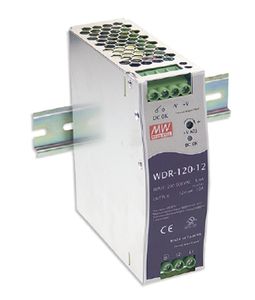

MEAN WELL WDR-120-12 Power Supply Switching Din Rail 120W 12 VDC, 10 Amp
Current Price
$66.27
Average
$63.05
Min Price
$52.57
Max Price
$70.35
Price dynamics
5%
Description
120W Single Output Industrial DIN RAIL Power Supply 12 Volts 10 Amps Features: • Wide input range 180 ~ 550VAC • Protections: Short circuit / Overload / Over voltage / Over temperature • Cooling by free air convection • Built-in constant current limiting circuit • Can be installed on DIN rail TS-35/7.5 or 15 • UL508(industrial control equipment)approved • EN61000-6-2(EN50082-2) industrial immunity level • 100% full load burn-in test • Built-in DC OK relay contact • 3 year warranty For more 12V power supplies . Detailed Specifications: • Primary Output Voltage (VDC): 12 • Output Current (A): 10 • Maximum Output Power (W): 120 • Family: WDR-120 • Input Voltage (VAC): 180 to 550 • Input Frequency: 47 to 63 • Maximum Input Current (A): 1.2 • Output Connector Type: Screw Terminal • Efficiency (%): 89.5 • Operating Temperature-Min (Cell): -25 • Operating Temperature-Max (Cell): 70 • Length (inch): 1.57 • Width (inch): 4.93 • Height (inch): 4.47 • Agency Approvals: UL/CUL/CB/CE • Color: Silver • Style: DIN.
