Description

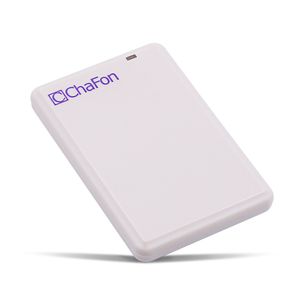

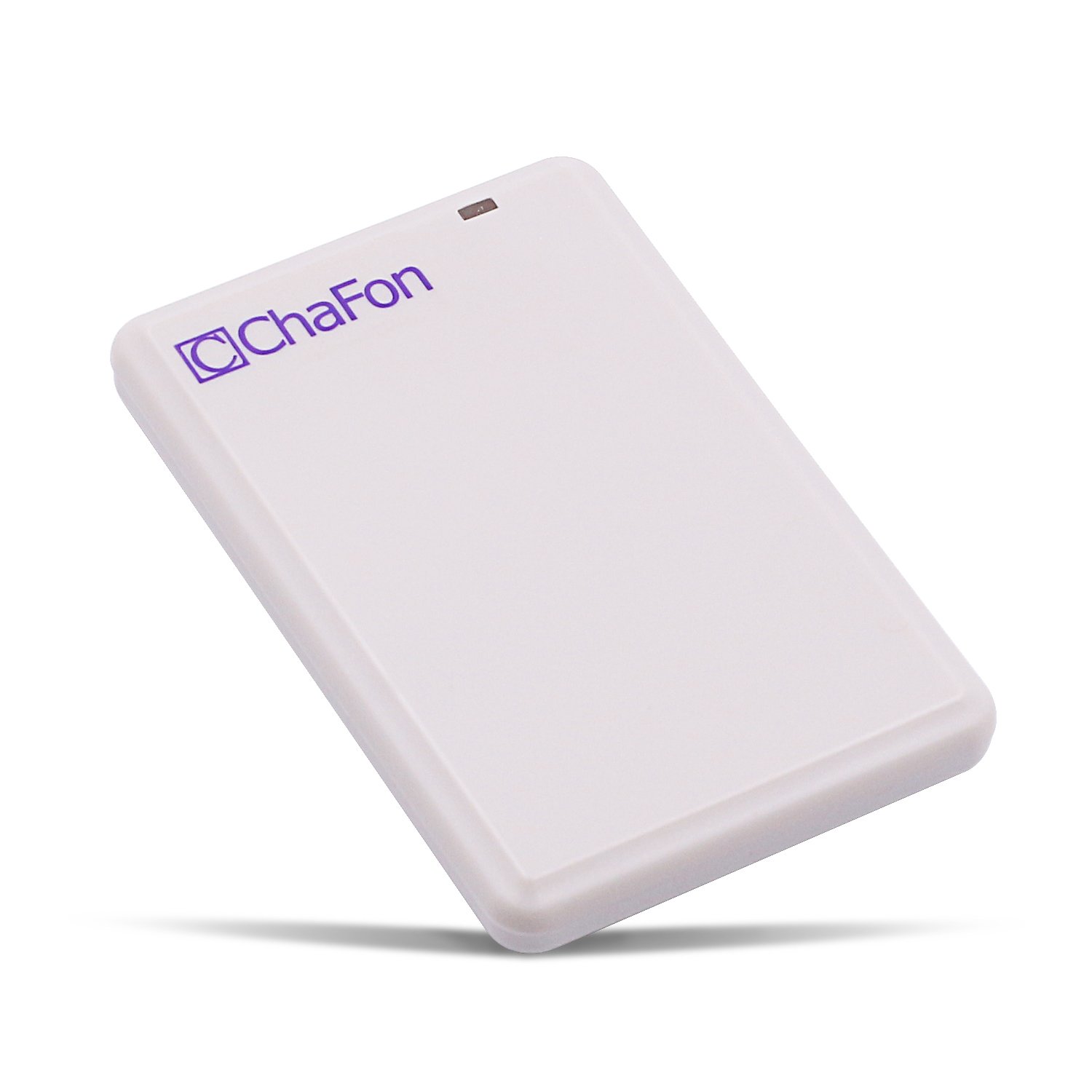

Chafon UHF Rfid USB Desktop Reader is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system
FEATURES
1. Self-intellectual property;
2. Support ISO18000-6B or ISO18000-6C(EPC C1G2)(Default Shipping) protocol tag;
3.Operating Frequency:860 - 960 MHz frequency band.;
4. FHSS or Fix Frequency transmission;
5. RF output power up to 10dbm( Need to customization before order);
6. No external power source needed;
7. Built-in antenna with effect distance up to 100mm*;
8. Support USB1.1 interface with HID mode;
9. Slim outline;
10. Default Output format:24bit EPC number.
Absolute Maximum Rating
ITEM SYMBOL VALUE UNIT Power Supply VCC 6 V Operating Temp. TOPR -10~+60 ℃ Storage Temp. TSTR -25~+80 ℃
Electrical and Mechanical Specification
Under TA=25℃,VCC=+5V unless specified ITEM SYMBOL MIN TYP MAX UNIT Power Supply VCC 4.5 5 5.5 V Current Dissipation IC 120 200 mA Frequency FREQ 902 928 MHz Effective Distance* Dis 0 100 200 mm
Package include:
1X UHF Rfid USB Desktop Reader (Read Only)
2X Testing Cards.
Please note:Not support IOS system
FEATURES
1. Self-intellectual property;
2. Support ISO18000-6B or ISO18000-6C(EPC C1G2)(Default Shipping) protocol tag;
3.Operating Frequency:860 - 960 MHz frequency band.;
4. FHSS or Fix Frequency transmission;
5. RF output power up to 10dbm( Need to customization before order);
6. No external power source needed;
7. Built-in antenna with effect distance up to 100mm*;
8. Support USB1.1 interface with HID mode;
9. Slim outline;
10. Default Output format:24bit EPC number.
Absolute Maximum Rating
ITEM SYMBOL VALUE UNIT Power Supply VCC 6 V Operating Temp. TOPR -10~+60 ℃ Storage Temp. TSTR -25~+80 ℃
Electrical and Mechanical Specification
Under TA=25℃,VCC=+5V unless specified ITEM SYMBOL MIN TYP MAX UNIT Power Supply VCC 4.5 5 5.5 V Current Dissipation IC 120 200 mA Frequency FREQ 902 928 MHz Effective Distance* Dis 0 100 200 mm
Package include:
1X UHF Rfid USB Desktop Reader (Read Only)
2X Testing Cards.
Please note:Not support IOS system
Chafon UHF RFID USB Desktop Reader Only with Keyboard Emulation Output + 2pcs UHF Testing Cards
Current Price
$149.47
Average
$149.09
Min Price
$36.66
Max Price
$160.68
Price dynamics
0%
Description
Chafon UHF Rfid USB Desktop Reader is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system
FEATURES
1. Self-intellectual property;
2. Support ISO18000-6B or ISO18000-6C(EPC C1G2)(Default Shipping) protocol tag;
3.Operating Frequency:860 - 960 MHz frequency band.;
4. FHSS or Fix Frequency transmission;
5. RF output power up to 10dbm( Need to customization before order);
6. No external power source needed;
7. Built-in antenna with effect distance up to 100mm*;
8. Support USB1.1 interface with HID mode;
9. Slim outline;
10. Default Output format:24bit EPC number.
Absolute Maximum Rating
ITEM SYMBOL VALUE UNIT Power Supply VCC 6 V Operating Temp. TOPR -10~+60 ℃ Storage Temp. TSTR -25~+80 ℃
Electrical and Mechanical Specification
Under TA=25℃,VCC=+5V unless specified ITEM SYMBOL MIN TYP MAX UNIT Power Supply VCC 4.5 5 5.5 V Current Dissipation IC 120 200 mA Frequency FREQ 902 928 MHz Effective Distance* Dis 0 100 200 mm
Package include:
1X UHF Rfid USB Desktop Reader (Read Only)
2X Testing Cards.
Please note:Not support IOS system
FEATURES
1. Self-intellectual property;
2. Support ISO18000-6B or ISO18000-6C(EPC C1G2)(Default Shipping) protocol tag;
3.Operating Frequency:860 - 960 MHz frequency band.;
4. FHSS or Fix Frequency transmission;
5. RF output power up to 10dbm( Need to customization before order);
6. No external power source needed;
7. Built-in antenna with effect distance up to 100mm*;
8. Support USB1.1 interface with HID mode;
9. Slim outline;
10. Default Output format:24bit EPC number.
Absolute Maximum Rating
ITEM SYMBOL VALUE UNIT Power Supply VCC 6 V Operating Temp. TOPR -10~+60 ℃ Storage Temp. TSTR -25~+80 ℃
Electrical and Mechanical Specification
Under TA=25℃,VCC=+5V unless specified ITEM SYMBOL MIN TYP MAX UNIT Power Supply VCC 4.5 5 5.5 V Current Dissipation IC 120 200 mA Frequency FREQ 902 928 MHz Effective Distance* Dis 0 100 200 mm
Package include:
1X UHF Rfid USB Desktop Reader (Read Only)
2X Testing Cards.
Please note:Not support IOS system
