Description
Technical Specification
Camera
Image Sensor: 1/3"" CMOS
Effective Pixels: 2688(H)×1520(V), 4.1MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination: 0.03Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio: More than 65dB
IR Distance: Up to 30m (98feet)
IR On/Off Control: Auto / Manual
IR LEDs: 12
Lens
Lens Type: Fixed lens / Fixed iris
Mount Type: Board-in
Focal Length: 2.8mm Optional
Max Aperture: F2.0
Angle of View: H: 84.8° (99.7°/52.5°)
Focus Control: N/A
Close Focus Distance: 800mm 31.5''
Pan/Tilt/Rotation: Pan: 0° ~ 355° Tilt: 0° ~ 65° Rotation: 0° ~ 355°
Video
Resolution: 4MP (2560×1440)
Frame Rate: 25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P
Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night: Auto (ICR) / Manual
OSD Menu: Multi-language
BLC Mode: BLC / HLC / DWDR
WDR: DWDR
Gain Control: AGC
Noise Reduction: 2D
White Balance: Auto / Manual
Smart IR: Auto / Manual
Certifications: CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface: N/A
Eelectrical
Power Supply: 12V DC ±25%
Power Consumption: Max 3.6W (12V DC, IR on)
Environmental
Operating Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F)
Storage Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal Resistance: IP67, IK10
Construction
Casing: Aluminium
Dimensions: Φ109.9mm×81.0mm (Φ4.33""×3.19"")
Net Weight: 0.21kg (0.46lb)
Gross Weight: 0.31kg (0.68lb)
Camera
Image Sensor: 1/3"" CMOS
Effective Pixels: 2688(H)×1520(V), 4.1MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination: 0.03Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio: More than 65dB
IR Distance: Up to 30m (98feet)
IR On/Off Control: Auto / Manual
IR LEDs: 12
Lens
Lens Type: Fixed lens / Fixed iris
Mount Type: Board-in
Focal Length: 2.8mm Optional
Max Aperture: F2.0
Angle of View: H: 84.8° (99.7°/52.5°)
Focus Control: N/A
Close Focus Distance: 800mm 31.5''
Pan/Tilt/Rotation: Pan: 0° ~ 355° Tilt: 0° ~ 65° Rotation: 0° ~ 355°
Video
Resolution: 4MP (2560×1440)
Frame Rate: 25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P
Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night: Auto (ICR) / Manual
OSD Menu: Multi-language
BLC Mode: BLC / HLC / DWDR
WDR: DWDR
Gain Control: AGC
Noise Reduction: 2D
White Balance: Auto / Manual
Smart IR: Auto / Manual
Certifications: CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface: N/A
Eelectrical
Power Supply: 12V DC ±25%
Power Consumption: Max 3.6W (12V DC, IR on)
Environmental
Operating Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F)
Storage Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal Resistance: IP67, IK10
Construction
Casing: Aluminium
Dimensions: Φ109.9mm×81.0mm (Φ4.33""×3.19"")
Net Weight: 0.21kg (0.46lb)
Gross Weight: 0.31kg (0.68lb)

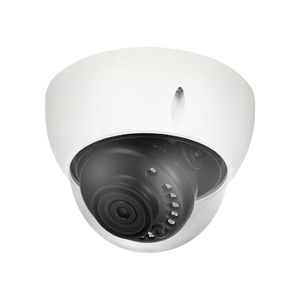

DHTek/Dahua OEM HAC-HDBW1400EN CCTV Camera,4MP HDCVI Dome Camera, 2.8mm Lens,Wide Angle, IP67, Vandalproof IK10, 98ft Smart IR Night Vision for Home Security
Price is below average
Current Price
$49.99
Average
$59.99
Min Price
$49.99
Max Price
$70.99
Price dynamics
17%
Description
Technical Specification
Camera
Image Sensor: 1/3"" CMOS
Effective Pixels: 2688(H)×1520(V), 4.1MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination: 0.03Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio: More than 65dB
IR Distance: Up to 30m (98feet)
IR On/Off Control: Auto / Manual
IR LEDs: 12
Lens
Lens Type: Fixed lens / Fixed iris
Mount Type: Board-in
Focal Length: 2.8mm Optional
Max Aperture: F2.0
Angle of View: H: 84.8° (99.7°/52.5°)
Focus Control: N/A
Close Focus Distance: 800mm 31.5''
Pan/Tilt/Rotation: Pan: 0° ~ 355° Tilt: 0° ~ 65° Rotation: 0° ~ 355°
Video
Resolution: 4MP (2560×1440)
Frame Rate: 25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P
Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night: Auto (ICR) / Manual
OSD Menu: Multi-language
BLC Mode: BLC / HLC / DWDR
WDR: DWDR
Gain Control: AGC
Noise Reduction: 2D
White Balance: Auto / Manual
Smart IR: Auto / Manual
Certifications: CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface: N/A
Eelectrical
Power Supply: 12V DC ±25%
Power Consumption: Max 3.6W (12V DC, IR on)
Environmental
Operating Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F)
Storage Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal Resistance: IP67, IK10
Construction
Casing: Aluminium
Dimensions: Φ109.9mm×81.0mm (Φ4.33""×3.19"")
Net Weight: 0.21kg (0.46lb)
Gross Weight: 0.31kg (0.68lb)
Camera
Image Sensor: 1/3"" CMOS
Effective Pixels: 2688(H)×1520(V), 4.1MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination: 0.03Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio: More than 65dB
IR Distance: Up to 30m (98feet)
IR On/Off Control: Auto / Manual
IR LEDs: 12
Lens
Lens Type: Fixed lens / Fixed iris
Mount Type: Board-in
Focal Length: 2.8mm Optional
Max Aperture: F2.0
Angle of View: H: 84.8° (99.7°/52.5°)
Focus Control: N/A
Close Focus Distance: 800mm 31.5''
Pan/Tilt/Rotation: Pan: 0° ~ 355° Tilt: 0° ~ 65° Rotation: 0° ~ 355°
Video
Resolution: 4MP (2560×1440)
Frame Rate: 25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P
Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night: Auto (ICR) / Manual
OSD Menu: Multi-language
BLC Mode: BLC / HLC / DWDR
WDR: DWDR
Gain Control: AGC
Noise Reduction: 2D
White Balance: Auto / Manual
Smart IR: Auto / Manual
Certifications: CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface: N/A
Eelectrical
Power Supply: 12V DC ±25%
Power Consumption: Max 3.6W (12V DC, IR on)
Environmental
Operating Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F)
Storage Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal Resistance: IP67, IK10
Construction
Casing: Aluminium
Dimensions: Φ109.9mm×81.0mm (Φ4.33""×3.19"")
Net Weight: 0.21kg (0.46lb)
Gross Weight: 0.31kg (0.68lb)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
