Pelican 1550-300-110 Panel Frame

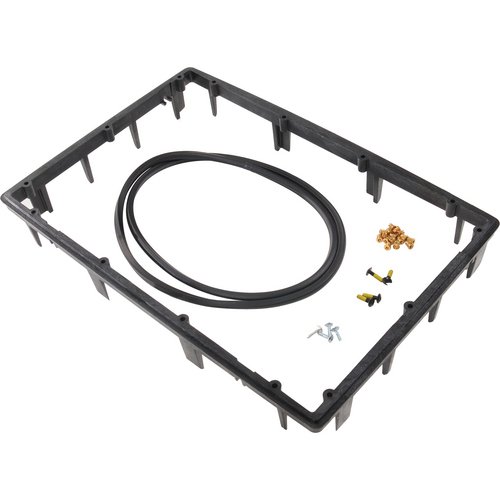

panel frames enable you to install an electronics interface panel that sits flush with the rim of a belly protector case a panel frame kit will typically include the panel frame itself boss inserts mounting screws and an o-ring seal make sure that the frame is correctly positioned prior to installation check for the model identifier and the word front the frame should be installed the front of the case with the text facing upwards as the mounting screws will protrude through the case if it's stored in Reverse to install the brass inserts place the frame with the model identifier facing down place the non shoulder small end of the insert into the hole and push in with a Philips screwdriver and still fully seated on the shoulder to secure the frame to their case fully seat the frame onto the internal ribs next insert a mounting screw into the hole and press firmly as you turn the screwdri
