Description

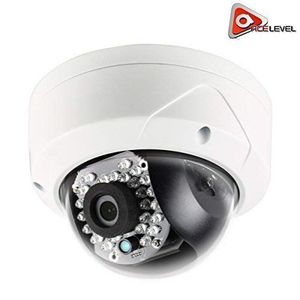

CMIP7442-M
Camera
Image Sensor: 1/3" Progressive Scan CMOS
Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0 Lux w/IR
Shutter Speed: 1/3 s to 1/10,000 s
Lens Mount: M12
Day & Night: IR cut filter w/auto switch
Swivel: -90~90°, Tilt: 0~75°
Compression Standard
Video Compression: H.264/MJPEG/H.264 Zip+
H.264 Type: Main Profile
Video Bit Rate: 32 Kbps~8 Mbps
Dual Streams: Support
Max. Resolution: 2688x1520
Frame Rate: 60Hz: 20fps (2688x1520), 30fps (1920x1080), 30fps (1280x720)
50Hz: 20fps (2688x1520), 25fps (1920x1080), 25fps (1280x720)
Image Setting: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC: Support, zone configurable
ROI Codec: Support
Network
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Alarm Trigger: Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General: One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface: 1 RJ45 10M/100M Ethernet port
On-Board Storage: Built-in Micro SD/SDHC/SDXC slot
Reset: Yes
General
Working Temperature/Humidity: -22~140°F; Humidity 95% or less (non-condensing)
Power Supply: DC12V ± 10%, PoE (802.3af)
Power Consumption: Max. 5W
IR Range: Approx. 100ft.
Weather Proof Ratings: IP66
Impact Protection: IK10
Dimensions: Φ4.4" x 3.2"
Weight: 1.1 lbs.
