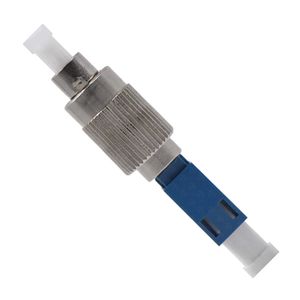

Beyondtech Fiber Optics Adapters (Hybrid)

These adapters are designed for Power Optical Meter or a Fiber Optics Visual Fault location, converting the standard FC/ST 2.5mm to 1.25mm that is the LC size. With this coupler, you can check with the previously mentioned tools LC cables integrity.

Properly tested

Each fiber optic LC to FC adapter is individually and rigorously tested and certified under Beyondtech fiber optic extender/couplers inspection processes to be within accurate optical insertion loss

Coupler specifications

• LC Female to FC (Male) female. (Converter Adapter 2.5mm to 1.25mm).
• Compatible with Visual Fault Locator.
• Used for Single mode connectors.

• 1310nm Insertion Loss: 0.3dB

• 1550nm Insertion Loss: 0.3dB

• 1310nm Return Loss: 45dB

• 1550nm Return Loss: 45dB

• Compatible with Optical Power Meter.
• Color code: Metal/Blue
• Polishing: UPC.
• Quantity Included: 1 Piece.
• Fiber Core: Singlemode
• Simplex Adapter.
• Complies with IEC 61754-4, IEC 60784-14 and TIA 604-3.
• RoHS compliant.
• Operating temperature: -20C to +70C.
• Panel and rack mountable.
• LAN, WAN, SAN and FTTx applications.
