Overview

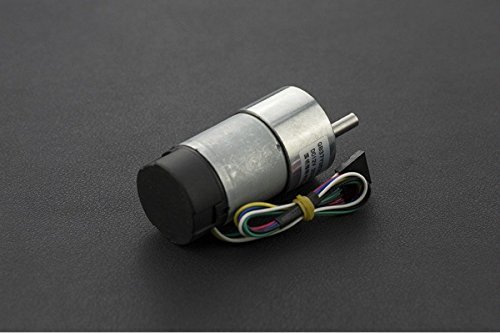

The Gear Motor with reducer and encoder, model No.GB37Y3530-12V-251R is a powerful 12V motor with a 43.8:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 16 counts per revolution of the motor shaft, which corresponds to 700 counts per revolution of the gearbox's output shaft. The encoder has a D-shaped output shaft, 1.55cm long, 6mm in diameter.The face plate has six mounting holes evenly spaced around the outer edge threaded for M3 screws. These mounting holes form a regular hexagon and the centers of neighboring holes are 15.5 mm(0.61 INCHES) apart.

NOTE

Do not screw too far into the mounting holes as the screws can hit the gears. Manufacturer recommends screwing no further than 3mm (1/8 inch) into the screw hole.

Shipping List

Gear ratio: 43.8:1
No-load speed: 251 add 10% RPM
No-load current: 350 mA
Start Voltage: 1.0 V
Stall Torque: 18 Kg.com
Stall Current: 7 A
Insulation resistance: 20 M ohm
EncoderOperating Voltage: 5 V
Encoder type: Hall
Encoder Resolution: 16CPR(motor shaft)/700CPR(gearbox shaft)
Weight: 205gjavascript:void(0);

Shipping List

GB37Y3530-12V-251R Gear Motor w/Encoder *1
