Specifications:
Input Voltage: DC 10~40V
Input Current: 0~8 AOutput Voltage: DC 0~38 V
Output Current: 0~6 A
Voltage Resolution: 0.01 V
Current Resolution: 0.001 A
Power Resolution: 0.001 W
Capacity Resolution: 0.001 AH
Max. Conversion Efficiency: 80%
Operating Temperature: -40~+ 85℃
Frequency: 150KHz
Size: 100 x 80mm / 3.93 x 3.15"Display
Meaning
00.00
Voltage,00.00~38.00V
0.000
Current,0.000~6.000A
P.000,P0.00,P00.0,P000.
Power(W), e.g.:P123=0.123W,P1.23=1.23W,P12.3=12.3W,P102.=102W
C.000,C0.00,C00.0,C000.
Capacity,(AH), e.g.:C.123=0.123AH,C1.23 = 1.23AH,C12.3 = 12.3AH,C123.= 123AH
--0-
Function0
--1-
Function1
--2-
Function2
--y-
Function On
--n-
Function Off
SA.-* (*=0~9)
Save parameter to a position(0~9)
Lo.-* (*=0~9)
Recall parameter from a position(0~9)
----
Save Parameter
Function 0: Automatically output after power on.
Function 1: Save and recall parameters; display power and capacity.
Function 2: Automatically display parameters in turn after output.
On/Off(default off):
Long press "OK" button, then power on the module. It will display "--0-","--1-","--2-" in turn. Release "OK" button when it displays "--0-" to turn on/off function 0; release "OK" button when it displays "--1-" to turn on/off function 1; release "OK" button when it displays "--2-" to turn on/off function 2. ("--y-"=on, "--n-"=off)
Package Includes:
1 x Converter Module

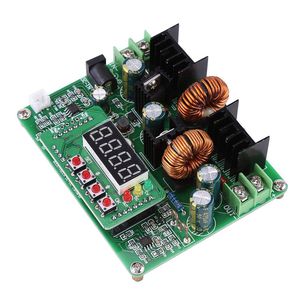

Boost Buck Converter, Dc Digital Module Boost Buck Converter Board 38V 6A
