Description
Product Parameter:
Product Name: 1-Channel 12V Learning Controller
Working Voltage: DC 12V
Max Working Load: 10A
Working Frequency: 433MHz
Receive Sensitivity: -108dBm
Working Temperature: -20 to +70 degree C
Max Quiescent Current: 6mA
Coding Way: Learning
Size: 43.7x32x15.6mm
Shell Size: 53.5x38x22mm
Remote Control Distance: 150m (OPEN)
Transmitter Size: 63x39.5x14.8mm
Key Quantity: 2
Modulation Mode: ASK
Work Pattern:
Jog: Press one button is working/ON. Release the same button is stop/OFF.
Self-lock: Press one button for one time is working/ON. Press the same button again is stop/OFF.
Inter-lock: Press button A is working/ON, press button B is stop/OFF.
Delay: Press one button for one time is working/ON and begin timekeeping, end of the timing is stop/OFF.
Match Code Learning:
eg.
Jog: Press the learning button on the relay once, and press button A at the same time, the learning indicator flashes, code is matched successfully while the flashing stops.
(Inter-Lock: Press 2 times continuously; Self-Lock: Press 3 times continuously; Delay: Press 4 times continuously)
Delay Setting:
J1 Connect, Delay 5s
J2 Connect, Delay 10s
J3 Connect, Delay 60s
J1, J2 Connect, Delay 20s
J1, J3 Connect, Delay 2min
J2, J3 Connect, Delay 5min
J1, J2, J3 Connect, Delay 10min
Note:
1. Do not press the transmitter quickly and frequently, the operation requires response time.
2. While the RC indicator light becomes dim or the RC distance becomes short, please replace battery in time.
3. No batteries included in Transmitter, please buy 12V 23A batteries by yourself.
Package:
1pc Receiver
2pcs Transmitter(No batteries included)
1pc Mini Screwdriver
Product Name: 1-Channel 12V Learning Controller
Working Voltage: DC 12V
Max Working Load: 10A
Working Frequency: 433MHz
Receive Sensitivity: -108dBm
Working Temperature: -20 to +70 degree C
Max Quiescent Current: 6mA
Coding Way: Learning
Size: 43.7x32x15.6mm
Shell Size: 53.5x38x22mm
Remote Control Distance: 150m (OPEN)
Transmitter Size: 63x39.5x14.8mm
Key Quantity: 2
Modulation Mode: ASK
Work Pattern:
Jog: Press one button is working/ON. Release the same button is stop/OFF.
Self-lock: Press one button for one time is working/ON. Press the same button again is stop/OFF.
Inter-lock: Press button A is working/ON, press button B is stop/OFF.
Delay: Press one button for one time is working/ON and begin timekeeping, end of the timing is stop/OFF.
Match Code Learning:
eg.
Jog: Press the learning button on the relay once, and press button A at the same time, the learning indicator flashes, code is matched successfully while the flashing stops.
(Inter-Lock: Press 2 times continuously; Self-Lock: Press 3 times continuously; Delay: Press 4 times continuously)
Delay Setting:
J1 Connect, Delay 5s
J2 Connect, Delay 10s
J3 Connect, Delay 60s
J1, J2 Connect, Delay 20s
J1, J3 Connect, Delay 2min
J2, J3 Connect, Delay 5min
J1, J2, J3 Connect, Delay 10min
Note:
1. Do not press the transmitter quickly and frequently, the operation requires response time.
2. While the RC indicator light becomes dim or the RC distance becomes short, please replace battery in time.
3. No batteries included in Transmitter, please buy 12V 23A batteries by yourself.
Package:
1pc Receiver
2pcs Transmitter(No batteries included)
1pc Mini Screwdriver

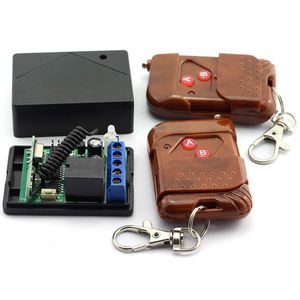

DZS Elec DC 12V 10A 1-Channel Wireless RF Remote Control Relay Switch Kit 433MHz Receiver with 2X Transmitters for Access Controller, Smart Home Switch
Current Price
$15.99
Average
$15.99
Min Price
$15.99
Max Price
$15.99
