Specifications:

PAL/NTSC automatic conversion.
Can store up to 1000 channels of television and radio programs.
Supports logical channel number (LCN).
Various channel editing functions(favorites, move, lock, skip, delete, rename, find, sort).

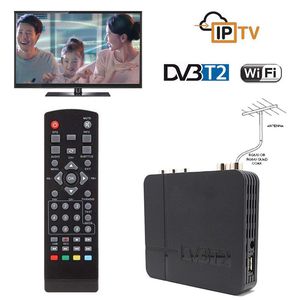

Type: Digital TV Box
Material: ABS
Flash Memory: 32Mbit
DDR-2 SDRAM: 512Mbit
Standard: ISO/IEC 13818-1
Input Max. Bit Stream Rate: 120Mbps
Maxlinear Silicon Tuner: MXL201
Input Frequency Range: VHF: 174-230MHz, UHF: 470-862MHz
IF Bandwidth: 6, 7 or 8MHz
Input Signal Level: -85dBm to -20dBm
RF Input Connector: D-type Connector(RF IN)
Input Impedance: 75℃
Modulation Mode: OFDM (Orthogonal Frequency Division Multiplexing)
Demodulation: 256QAM, 64QAM, 16QAM and QPSK
Guard Interval: 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128
FEC Code Rates: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
RF Input: 1 x IEC169-2, Female
RF Output: 1 x IEC169-2, Male
Digital Output: 1 x HDMI
Analog Output: 1 x RCA
USB: 1 x USB2.0 for Upgrading, Multi-media Play, PVR and Timeshifting
Input Voltage: AC200 to 240V
Power Consumption: Max. 5W
Stand-by Power Consumption: <0.5W
Operating Temperature: 0℃ to 45℃
Features: Portable, HD Display, Video Receiver, Set-top Box
Size: 105mm x 120mm x 25mm/4.13" x 4.72" x 0.98" (Approx.)


Notes:
This product does not support for Dobly or AC-3, if you want to watch the channels of this format, it will be no sound.
When you purchase this product before, pls consider carefully.
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.

Package Includes:
1 x Digital TV Box
1 x Power Adapter
1 x Remote Control
1 x AV Cable
1 x User Manual
