DESCRIPTION

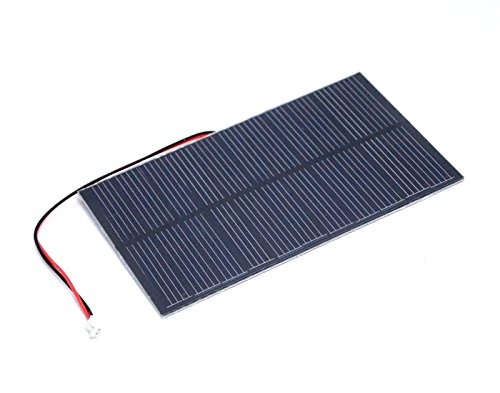

This solar panel is made of single-crystal material that performs high solar energy transformation efficiency at 17%.
It has a fine resin surface and sturdy back suitable for outdoor environments.
A 2mm JST connecter is attached to the penal, which makes it perfect to team up with most of our can-use-solar-power-supply boards, Lipo Rider charging boards seriesand XBee carrier WSN products series.

The typical open circuit voltage is around 5V, depending on light intensity.
In those bright summer days with clear sky and big sun, the peak OC voltage can rush up to 10V.
To prevent any damage to boards that accept a narrow range of input voltage, like Lipo Rider, it's recommended to check whether the OC voltage is safe before any connection.

Features

- PCB size : 137*81*1.5 mm
- Monolithic : 78*11.14 mm
- Efficiency : 17%
- Dimensions: 137*81*2.5(±0.2) MM
- Typical voltage: 5.5V
- Typical current: 270mA
- Open-circuit voltage: 8.2 V
- Maximum load voltage: 6.4V

Application

- Solar Tingyuan Deng lighting
- Small household lighting systems
- Solar street lighting
- Outdoor solar advertising
- Suitable for all kinds of low-power electrical appliances, emergency lights Yeah, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar lights, small solar systems

Shipping List

1.5W Solar Panel * 1
