Description
Parameters:
Input Voltage Range: 3.2~13VDC
Output Voltage: ±15VDC
Output Voltage Precision: ±1.5%(output positive +Vo, 100% load); ±5%(output negative -Vo, 100% load)
Linear Adjustment Rate: ±0.5%(output positive +Vo, 100% load); ±1.5%(output negative -Vo, 100% load)
Load Adjustment Rate: ±1%(output positive +Vo, 100% load); ±3%(output negative -Vo, 100% load)
Rated Output Current: 100mA
Efficiency: 82%
Ripple Noise: 60~120mV (input voltage 5V, full load 3W output)
Working Temperature: -40~+85℃ (if more than 50 ℃, needs derating 0.05W / ℃)
Terminal Function:
VIN: 3.2V~Vinmax DC voltage input
GND: Input and output common ground
+Vo: Output positive
-Vo: Output negative
NC: Vacant port, no electrical connection
EN: Module Enable (when VEN <0.8V, the module does not work; when 1.4V Note: when VEN <0.8V, the circuit structure is limited, at this time, + Vo still voltage output about VIN; and -Vo no voltage output.
Note:
1. Please note that the module doesn't support short circuit protective function, please pay attention before wiring.
2. It can get better performance if positive and negative output current are greater than 20mA.
3. + Vo is forbidden with no-load; when the -Vo load is too heavy, + Vo load is too light, it is recommended to increase dummy load resistance at the + Vo and ground.
4. C1/C2/C5/C6/C7/C8 adopts ceramic capacitors can get better overall performance; LM78xx/LM79xx three-terminal regulator chip can be replaced with the same function chip.
5. EN is enable pin, for general application, the pin can be vacated, the module default normal output.
Package Including:
1x Mini Boost Voltage Converter
Input Voltage Range: 3.2~13VDC
Output Voltage: ±15VDC
Output Voltage Precision: ±1.5%(output positive +Vo, 100% load); ±5%(output negative -Vo, 100% load)
Linear Adjustment Rate: ±0.5%(output positive +Vo, 100% load); ±1.5%(output negative -Vo, 100% load)
Load Adjustment Rate: ±1%(output positive +Vo, 100% load); ±3%(output negative -Vo, 100% load)
Rated Output Current: 100mA
Efficiency: 82%
Ripple Noise: 60~120mV (input voltage 5V, full load 3W output)
Working Temperature: -40~+85℃ (if more than 50 ℃, needs derating 0.05W / ℃)
Terminal Function:
VIN: 3.2V~Vinmax DC voltage input
GND: Input and output common ground
+Vo: Output positive
-Vo: Output negative
NC: Vacant port, no electrical connection
EN: Module Enable (when VEN <0.8V, the module does not work; when 1.4V
Note:
1. Please note that the module doesn't support short circuit protective function, please pay attention before wiring.
2. It can get better performance if positive and negative output current are greater than 20mA.
3. + Vo is forbidden with no-load; when the -Vo load is too heavy, + Vo load is too light, it is recommended to increase dummy load resistance at the + Vo and ground.
4. C1/C2/C5/C6/C7/C8 adopts ceramic capacitors can get better overall performance; LM78xx/LM79xx three-terminal regulator chip can be replaced with the same function chip.
5. EN is enable pin, for general application, the pin can be vacated, the module default normal output.
Package Including:
1x Mini Boost Voltage Converter

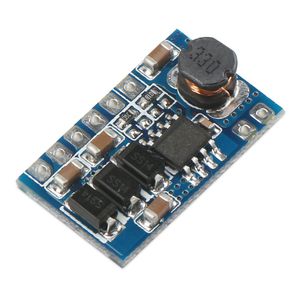

DROK Mini Boost Voltage Converter DC 3.2-13V to DC ±15V Positive Negative Dual Output Power Regulator Module 100mA Step Up Volts Transformer Board
Price is below average
Current Price
$8.99
Average
$9.13
Min Price
$8.99
Max Price
$9.68
Price dynamics
2%
Description
Parameters:
Input Voltage Range: 3.2~13VDC
Output Voltage: ±15VDC
Output Voltage Precision: ±1.5%(output positive +Vo, 100% load); ±5%(output negative -Vo, 100% load)
Linear Adjustment Rate: ±0.5%(output positive +Vo, 100% load); ±1.5%(output negative -Vo, 100% load)
Load Adjustment Rate: ±1%(output positive +Vo, 100% load); ±3%(output negative -Vo, 100% load)
Rated Output Current: 100mA
Efficiency: 82%
Ripple Noise: 60~120mV (input voltage 5V, full load 3W output)
Working Temperature: -40~+85℃ (if more than 50 ℃, needs derating 0.05W / ℃)
Terminal Function:
VIN: 3.2V~Vinmax DC voltage input
GND: Input and output common ground
+Vo: Output positive
-Vo: Output negative
NC: Vacant port, no electrical connection
EN: Module Enable (when VEN <0.8V, the module does not work; when 1.4V Note: when VEN <0.8V, the circuit structure is limited, at this time, + Vo still voltage output about VIN; and -Vo no voltage output.
Note:
1. Please note that the module doesn't support short circuit protective function, please pay attention before wiring.
2. It can get better performance if positive and negative output current are greater than 20mA.
3. + Vo is forbidden with no-load; when the -Vo load is too heavy, + Vo load is too light, it is recommended to increase dummy load resistance at the + Vo and ground.
4. C1/C2/C5/C6/C7/C8 adopts ceramic capacitors can get better overall performance; LM78xx/LM79xx three-terminal regulator chip can be replaced with the same function chip.
5. EN is enable pin, for general application, the pin can be vacated, the module default normal output.
Package Including:
1x Mini Boost Voltage Converter
Input Voltage Range: 3.2~13VDC
Output Voltage: ±15VDC
Output Voltage Precision: ±1.5%(output positive +Vo, 100% load); ±5%(output negative -Vo, 100% load)
Linear Adjustment Rate: ±0.5%(output positive +Vo, 100% load); ±1.5%(output negative -Vo, 100% load)
Load Adjustment Rate: ±1%(output positive +Vo, 100% load); ±3%(output negative -Vo, 100% load)
Rated Output Current: 100mA
Efficiency: 82%
Ripple Noise: 60~120mV (input voltage 5V, full load 3W output)
Working Temperature: -40~+85℃ (if more than 50 ℃, needs derating 0.05W / ℃)
Terminal Function:
VIN: 3.2V~Vinmax DC voltage input
GND: Input and output common ground
+Vo: Output positive
-Vo: Output negative
NC: Vacant port, no electrical connection
EN: Module Enable (when VEN <0.8V, the module does not work; when 1.4V
Note:
1. Please note that the module doesn't support short circuit protective function, please pay attention before wiring.
2. It can get better performance if positive and negative output current are greater than 20mA.
3. + Vo is forbidden with no-load; when the -Vo load is too heavy, + Vo load is too light, it is recommended to increase dummy load resistance at the + Vo and ground.
4. C1/C2/C5/C6/C7/C8 adopts ceramic capacitors can get better overall performance; LM78xx/LM79xx three-terminal regulator chip can be replaced with the same function chip.
5. EN is enable pin, for general application, the pin can be vacated, the module default normal output.
Package Including:
1x Mini Boost Voltage Converter
