Description
Work: D Class
Quiescent Current: 20mA
Efficiency: 90%
Rated output power: 10W +10 W (8Ω)
Frequency response: 20Hz to 50KHz
Operating voltage: DC7.5-15V
Recommended supply voltage: 12V, the center PIN of 12VDC is +.
PCB board size: (40 * 40) mm
Power Interface: 5.5 socket
NOTE:
It is NOT acceptable to connect the - outputs of the L & R speakers together.
Package includes:
1x Mini Amplifier Board
Quiescent Current: 20mA
Efficiency: 90%
Rated output power: 10W +10 W (8Ω)
Frequency response: 20Hz to 50KHz
Operating voltage: DC7.5-15V
Recommended supply voltage: 12V, the center PIN of 12VDC is +.
PCB board size: (40 * 40) mm
Power Interface: 5.5 socket
NOTE:
It is NOT acceptable to connect the - outputs of the L & R speakers together.
Package includes:
1x Mini Amplifier Board

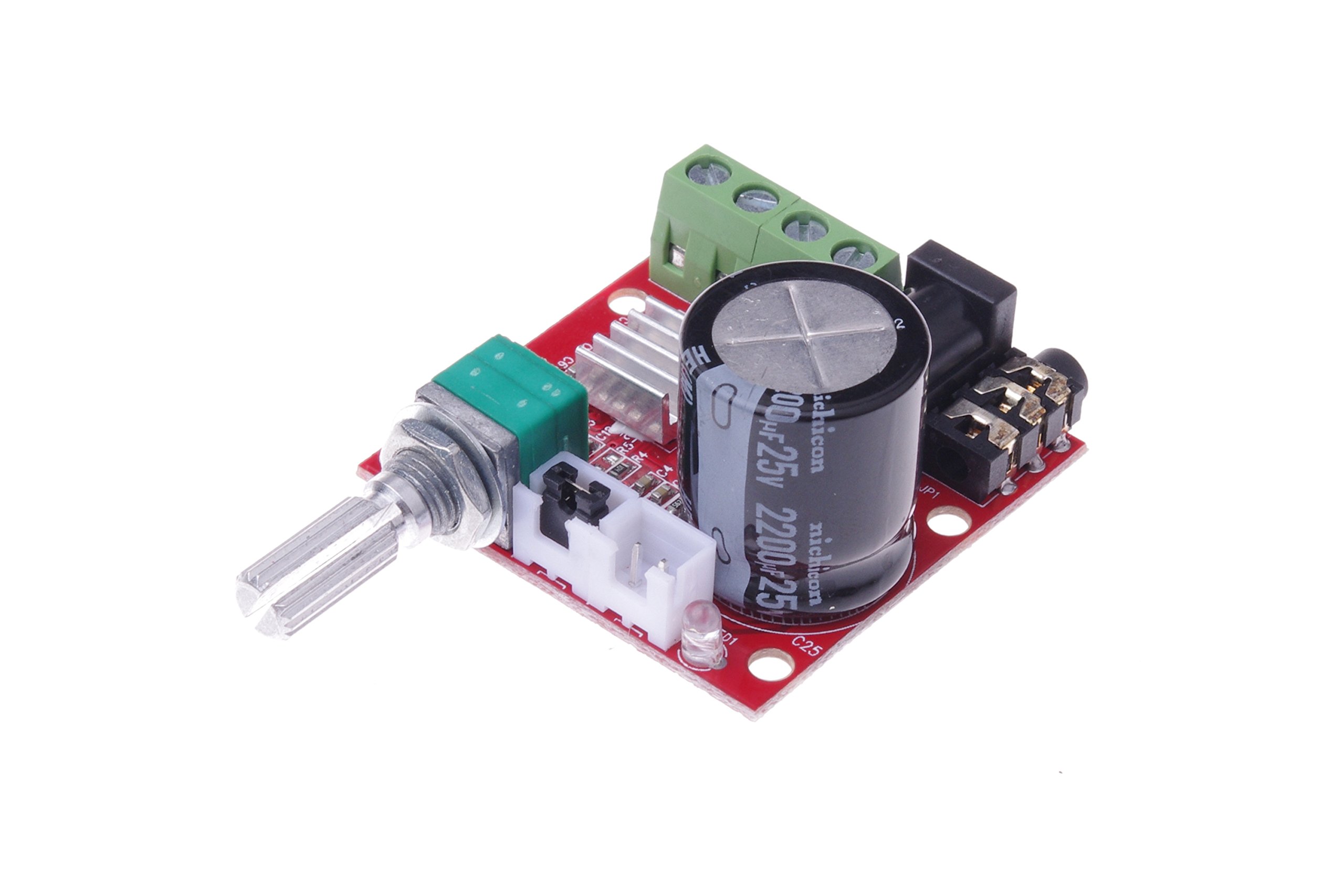

SMAKN® Mini PC Digital Stereo Audio Amplifier Module 10W+10W 2 Channel Power Amp Class-D 12 V DC
