MPO is Multiple-Fibre Push-On connector, defined by IEC-61754-7 and TIA-604-5-D.

MTP connector, designed by US Conec Ltd. and fully compliant with the MPO standards, is an MPO connector with better optical and mechanical performance. The MT ferrule can float in the MTP to maintain physical contact on a mated pair if there is a strain on the cable. Generic MPO connectors do not offer this kid of feature.

Our MPO connector can working with MTP connector, and have better cost.

Description:

multi-mode MPO products are multifiber connectors used in high-density backplane and Printed Circuit Board(PCB) applications in data and telecommunications system. The MPOstander is fully compatible with MTP stander, offers up to 12 times the density of standardconnectors, such as LC/SC/FC etc. MPO/MTP patch cord providing sinificant space and cost savings.

MPO patchcord utilize precision molded MT ferrules, with metal guide pins and precisehousing dimensions to ensure fiber alignment when mating. The MPO can be mass terminated in combination of 4, 8, 12 or 24 fiber ribbon cables.

MPO Feature:

High fiber density

Small volume, easy management

Can customize connection method as QSFP requirements

Application

Telecom system

Cabling system

High Density optical laser

QSFP devices

Specifications:

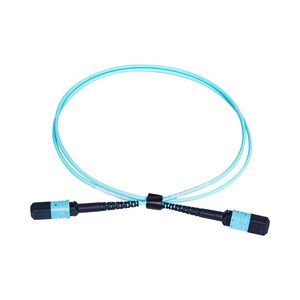

MPO (female) to MPO (female)

MMF(50/125um), OM3

Cable Length:1-50meter

MPO Insertion loss : MPO ≤ 0.6 dB

LC Insertion loss :≤0.3dB

LC Return loss : ≥30dB

Insert- pull test : 500times <0.5 dB

Operation temperature : -40℃～+80℃
