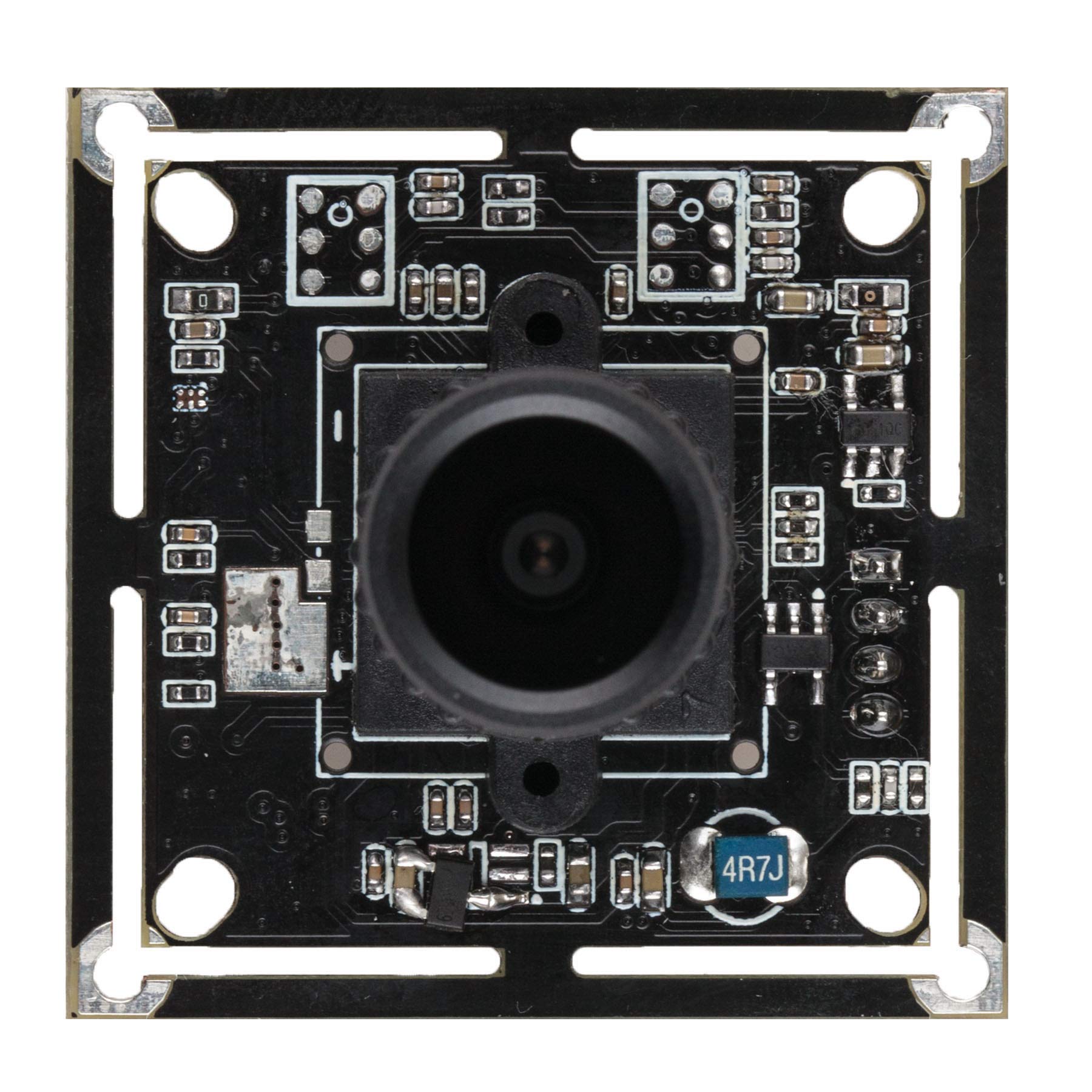

Image Sensor: 1/2.8'' CMOS Sony IMX290
Pixel Size: 2.9μm x 2.9μm
Resolution: 2 MP FULL HD 1920(H) X 1080(V)
Shutter Type: Electronic rolling shutter
Focus: Manually adjustable
Focusing Range: 20mm to Infinity
Protocol & Connection: Plug-&-Play (UVC compliant)
Frame Rate:
320X240 QVGA MJPEG/H264 @30fps YUV2 @30fps
640X480 VGA MJPEG/H264 @30fps YUV2 @30fps
1280X720 HD MJPEG/H264 @30fps N/A
1920X1080 FHD MJPEG/H264 @30fps N/A
Minimum Illumination: 0.002 Lux
WDR: 63db
Lens: Non-distortion Lens, D.FOV 100 degree, F2.4 . For other Custom options, please contact us: 2.1mm, 2.8mm, 3.6mm, 6mm, 8mm, 12mm, 16mm, 25mm, Pin-hole 3.7mm, 4.3mm lens, 185 Degree Fisheye, CS lens and others upon request
Controllable Features: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure.
Power Socket: 4P PH 2.0mm socket, USB BUS Power.
Cable Length: Default 4ft (1.2M) (optional 2M or others upon request).
Supported OS: Win XP/Vista/Win7/Win8/Win10, Linux with UVC (linux-2.6.26 or later), MAC-OS X 10.4.8 or later, Wince with UVC, Android 4.0 or higher with UVC.
Power Consumption: DC5V (±5%), 150~200mA.
Operating Temp.: -4°F~167°F (-20°C~+75°C).
Storage Temp.: -40°F~185°F (-40°C~+125°C)
Dimension: 38mmx 38mm (Mount compatible with 32 x 32mm)
Weight: 12g (0.4OZ)
