Description
Turret cameras, when mounted sideways on walls, often suffer from rain droplets running down the lens glass resulting in poor image quality and reduced infrared range.
Camera mounting brackets and bases also provide some level of protection to the cable flylead and connectors on the camera, minimising the risk of water ingress and unwanted tampering.
Description:

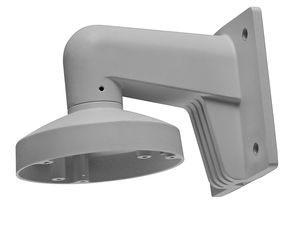

Mount: Indoor/Outdoor wall mount
Construction: Aluminum alloy
Weight: 420g
Dimension: Φ120×122×169mm
Features:
Die-cast aluminum alloy, surface spray treatment
With waterproof rubber mats, indoor and outdoor universal design
Bracket with outlet hole, install more beautiful
Pitch up design, reducing equipment water hazards
Precautions:
Flat wall bracket mounting requirements
Stents outdoors, be sure to use waterproof rubber pad
To withstand the weight of the wall bracket mounting bracket and more than three times the total weight of the camera
Bracket to withstand the maximum weight of 4.5KG
Applicable Model:
DS-2CD2142, DS-2CC51D3, DS-2CC52x, DS-2CD2112,
DS-2CD2122, DS-2CD2125, DS-2CD213x, DS-2CD2142,
DS-2CD2152, DS-2CD2155, DS-2CE56x, H45, H55, H85,
AC334-OD, AC335-OD, NV743MF-IR, NV744MF-IR, CMIP7442,
CMHD73T2x, CMHD7352x, CMHD7322x, CMHD7422, CMIP7352W,
CMIP7382W, CMIP7452, CMIP7422, CMIP3432, CMIP7432, CMIP3412,
CMIP7412, LTB342-110, KNC-p4DR4IR, KN-C-p3DR4IR, WL-IC8D,
WL-IC5D, WL-IC2D, WL-IC4D, I61FC, HNC304, HNC305, HNC324,
HNC325, HNC328
